DNE Power CAM
DNE Power CAM DNE POWER CAM is a globally available programming software that provides users with an efficient and precise cutting experience. It is an intelligent system designed to handle programming for sheet cutting, bending, and tube cutting, enabling users to make the most of DNE’s advanced technologies. Get cutting-edge tools optimized for your tasks, highly compatible with your DNE equipment. Take the first step toward a smart factory. Fully integrated interface A consistent look and feel, with color-coded modules for easy navigation. User-friendly design Intuitive features that are simple to access and operate. Built-in online support Assistance available for all functions and programming steps. CAD integration Seamless connection to third-party CAD systems for efficient programming. Multi-screen support Work more efficiently with optional multi-monitor setups. Cutting-edge auto-nesting engine that drives major cost savings. Achieve high-performance nesting in just a few simple steps. Maximize material usage with scrap and rejected-part nesting. Integrated automated process guidance parameters. Real-time visual error detection and alerts Automatic Part Importer Batch import with automatic process loading Differentiate processing by layer, contour, line type, and color Template-based operation to eliminate tedious setup Function-based etching and automatic labeling Smart placement to avoid restricted machining areas 3D graphics import* Fast Quotation Tool Efficient part cost calculation with customizable cost templates One-click report generation with all information integrated in a unified interface Get a Quote Ative o JavaScript no seu navegador para preencher este formulário.Ative o JavaScript no seu navegador para preencher este formulário.Name *Email *Phone * Country *City *CompanyMessage Submit Now
Laser Welding Machine

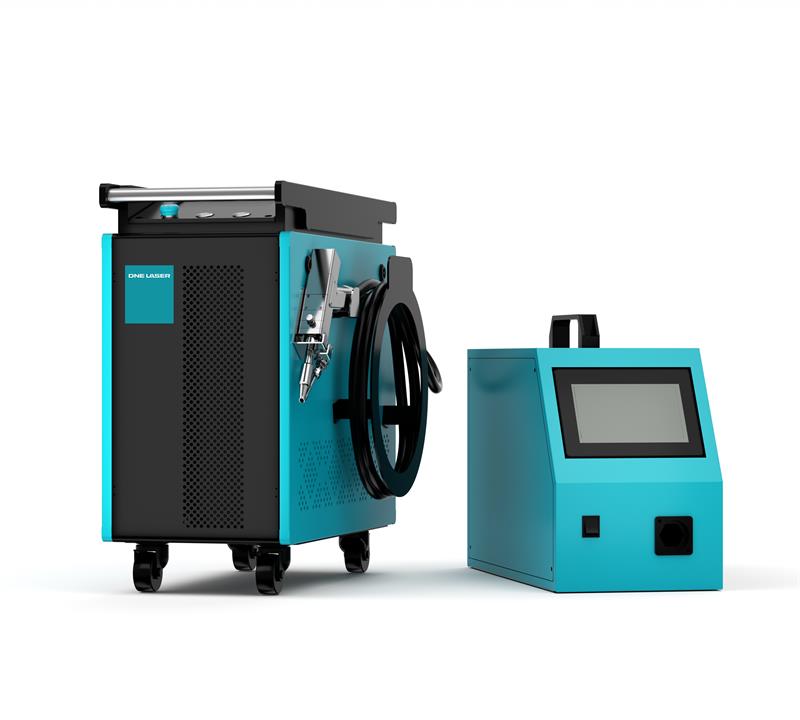

Laser Welding Machine Portable laser welding machine Get a Quote Product Description Product Description The Handheld Laser Welding Machine adopts the latest generation laser generator, filling the gap in handheld welding. lt features advantages like simple operations, aesthetically refined welds, and rapid welding speed. Suitable for welding metal materials such as aluminum alloy plates, stainless steel plates, iron plates, and galvanized plates, it can perfectly replace traditional processes like argon arc welding and electric arc welding. Product Features High-sealing design extends service life. High-quality lens with special coating minimizes power loss. Drawer-type protective lens for quick replacement. Spot size adjustable from 0.2 to 4.0 mm. No deformation, no visible weld marks; firm welding. Safer and more eco-friendly. Smooth, refined welds reduce subsequent grinding, saving time and costs. Easy to operate, no welding permit required. Even beginners can make aesthetic products. Low material consumption and long-lasting durability of laser welding. Low material consumption and long-lasting durability of laser welding. Technical Parameter Type Water-cooled Handheld Laser Welding Machine Air-cooled Handheld Laser Welding Machine Laser power 1500W 2000W 3000W 1500W 2000W Recommended welding thickness 0.5-3mm 0.5-5mm 0.5-8mm 0.5-4mm 0.5-5mm Weld seam requirements ≤ 0.5mm ≤ 2/3mm ≤0.2mm Welding speed range 0~120 mm/s 0~120 mm/s Laser wavelength 1070 NM 1080nm±5% Fiber cable length Standard 10 M; Maximum supported: 15M Standard 10 M Operating temperature 10~40℃ 0℃-40℃ Operating humidity <70% (No Condensation) <70% (No Condensation) Get a Quote Ative o JavaScript no seu navegador para preencher este formulário.Ative o JavaScript no seu navegador para preencher este formulário.Name *Email *Phone * Country *City *CompanyMessage Submit Now
Smart Factory Solution

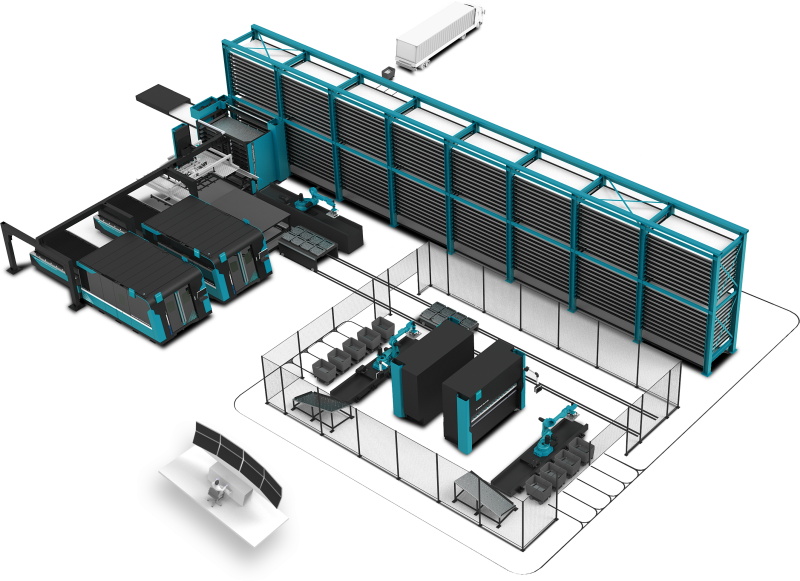

Smart Factory Solution Integrated automation systems that combine intelligent warehousing Get a Quote Product Description Product Description Integrated automation systems that combine intelligent warehousing, laser cutting, and flexible bending, and connect via MES and digital twin technologies, enable fully data-driven, unmanned, and visualized sheet-metal manufacturing. Product Features Automatic supply and turnover of material. Unattended automatic production. Easy production process control. Automated order and scheduling. Technical Parameter Model Specifications 1530 2040 Max.Sheet Metal Weight 300/800kg 300/1000kg Max.Sheet Metal Size 3000*1500mm*mm 400*2000mm°mm Min.Sheet Metal Size 1000°1000mm°mm 1000*1000mm°mm Sheet Metal Thickness 0.8-20mm 0.8-15mm Trolley Load Weight 3000kg 5000kg Sheet Metal Distribution Standard Standard Double Sheet Metal Detection Standard Standard Traceless Gear Shaper Optional Optional Electric Raw Material/ Small Trolley for Finished Product Optional Optional Double-Layer Raw Material/ Electri Troley for Finished Product Optional Optional Small Material Handling Trolley Optional Optional Get a Quote Ative o JavaScript no seu navegador para preencher este formulário.Ative o JavaScript no seu navegador para preencher este formulário.Name *Email *Phone * Country *City *CompanyMessage Submit Now
D-Trans

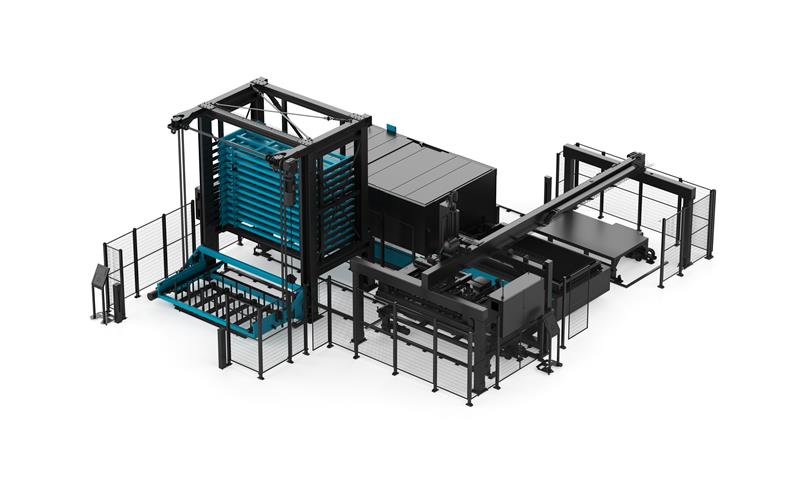

D-Trans Automatic Loading and Unloading System Get a Quote Product Description Product Description D-Trans automatic loading and unloading system for laser cutting machine is used to increase the utilization and efficiency of machine tools, saving labour costs and resources, and meeting a wide range of needs from simple material handling to fully automated operations. DNE LASER specializes in providing customized solutions for fiber laser cutting machines and their auxiliary equipment. Whether it’s addressing specific processing requirements for sheet cutting, achieving precise positioning and displacement of irregular parts, or ensuring efficient large-scale production. Product Features Save labor cost and enhance machine utilization. Rapid material processing reduces installation time. Customized specifications are available based on individual orders. Initial implementation of unattended operation in workpiece production and processing. Technical Parameter Model Specifications 1530 2040 Max.Sheet Metal Weight 300/800kg 300/1000kg Max.Sheet Metal Size 3000*1500mm*mm 400*2000mm°mm Min.Sheet Metal Size 1000°1000mm°mm 1000*1000mm°mm Sheet Metal Thickness 0.8-20mm 0.8-15mm Trolley Load Weight 3000kg 5000kg Sheet Metal Distribution Standard Standard Double Sheet Metal Detection Standard Standard Traceless Gear Shaper Optional Optional Electric Raw Material/ Small Trolley for Finished Product Optional Optional Double-Layer Raw Material/ Electri Troley for Finished Product Optional Optional Small Material Handling Trolley Optional Optional Get a Quote Ative o JavaScript no seu navegador para preencher este formulário.Ative o JavaScript no seu navegador para preencher este formulário.Name *Email *Phone * Country *City *CompanyMessage Submit Now

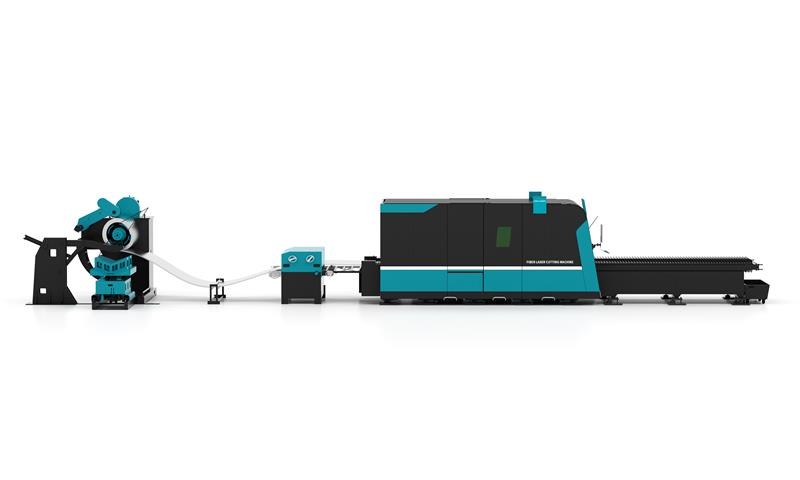

D-Roller
D-Roller Fiber Laser Cutting Machine with Coiler and Leveling System Get a Quote Product Description Product Description DNE LASER specializes in providing customized solutions for fiber laser cutting machines and their auxiliary equipment. Whether it’s addressing specific processing requirements for sheet cutting, achieving precise positioning and displacement of irregular parts, or ensuring efficient large-scale production. Coiler and leveler device can realize automatic leveling of coiling, accurate feeding, stable and reliable operation; Automatic production line helps to increase production capacity and save cost. Product Features Imported electronic parts with long life and few failures. It is suitable for loading and correcting various metal materials with good effect. After the material is corrected, it is smooth without indentation and does not damage the surface of the material. The roller is made of hollow bearing steel material, after intermediate frequency treatment (surface hardness to 60°), it is hard chromed and then finely ground, with high hardness, excellent wear resistance and extremely long life. Technical Parameter Feeding width 100-1500mm Material thickness （Choose one out of four） 0.3-1.0 mm(Galvanized sheet, ordinary carbon steel)； 0.3-0.5mm(Stainless steel) 0.5-2.0 mm(Galvanized sheet, ordinary carbon steel)； 0.5-1.5mm(stainless steel） 0.8-3.0 mm(Galvanized sheet, ordinary carbon steel)； 0.8-2mm(stainless steel) 1.0-5.0 mm(Galvanized sheet, ordinary carbon steel)； 1.0-3.5mm(stainless steel) Feeding length 9999.99mm（ Digital adjustable） Leveling roll Upper 5 Lower 6 (Hard-chrome-plated) -11 rolls Upper 7 Lower 8 (Hard-chrome-plated) -15 rolls Leveling flatness 11-roll：≤±1.5mm/㎡ 15-roll： ≤±1.0mm/㎡ Feeding accuracy ±0.5mm/m Feeding speed 24m/min Maximum feeding speed Maximum material width 1500mm Get a Quote Ative o JavaScript no seu navegador para preencher este formulário.Ative o JavaScript no seu navegador para preencher este formulário.Name *Email *Phone * Country *City *CompanyMessage Submit Now
C-Bend S

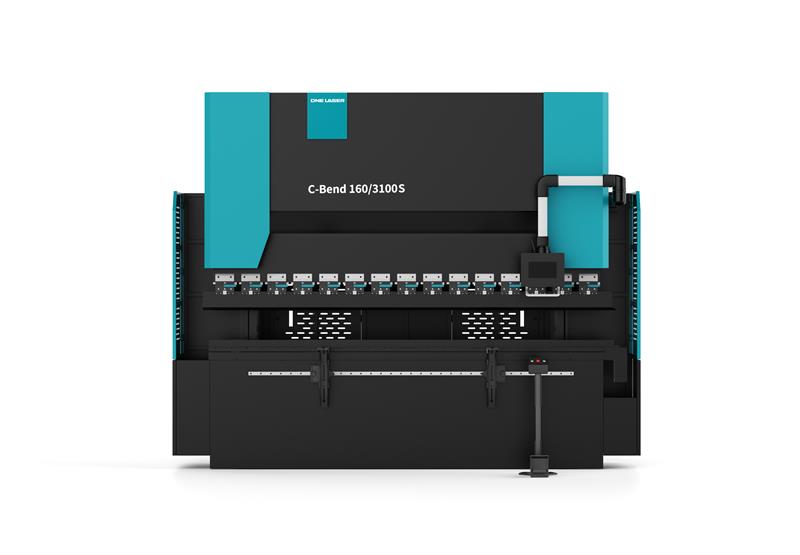

C-Bend S Electro-Hydraulic Servo Press Brake Get a Quote Product Description Product Description DNE LASER C-Bend S electro-hydraulic servo press brake is a powerful tool for sheet metal processing. It features advanced electro-hydraulic servo technology for stable operation and high precision. With a robust 160T force and a 3100 mm working length, it can handle a wide range of sheet metal bending tasks. The intelligent control system is user-friendly and allows for quick parameter settings. The machine’s sturdy structure ensures high reliability, enhancing bending efficiency and maintaining processing quality, offering a new level of efficiency and precision in sheet metal processing. Product Features CNC-controlled mechanical deflection compensation technology ensures consistent bending quality. Favorable price-performance ratio, quick The high-frequency response closed-loop hydraulic control technology offers outstanding speed, efficiency, and precision. The frame is integrally welded and undergoes CNC annealing to eliminate stress, ensuring precision and no deformation after processing. The “C” frame design provides a broader processing range and higher flexibility, accommodating complex shapes and sizes of workpieces. The enhanced hydraulic pump and main servo motor deliver superior power, resulting in faster bending speeds and significantly improved production efficiency. Technical Parameter Technical indicators Unit C-Bend-S 100/3100 C-Bend-S 160/3100 Bending force kN 1000 1600 Bending length mm 3100 3100 Opening height mm 500 600 Side plate spacing mm 2500 2500 Throat depth mm 410 410 Y-axis (oil cylinder) travel mm 200 300 X-axis travel mm 500 500 X-axis maximum positioning length mm 800 800 R-axis travel mm/s 100 200 Z-axis travel (for 6-axis backgauge, optional) mm 2300 2300 Y-axis precision mm 0.01 0.01 X-axis precision mm 0.05 0.05 R-axis precision mm 0.05 0.05 Y-axis rapid traverse speed mm 150 15 Y-axis working feed speed mm/s 10 10 Y-axis return speed mm/s 140 140 X-axis positioning speed mm/s 400 400 R-axis positioning speed mm/s 100 100 Z-axis positioning speed (for 6-axis backgauge, optional) mm/s 600 600 Hydraulic oil volume L 250 250 Get a Quote Ative o JavaScript no seu navegador para preencher este formulário.Ative o JavaScript no seu navegador para preencher este formulário.Name *Email *Phone * Country *City *CompanyMessage Submit Now
C-Bend

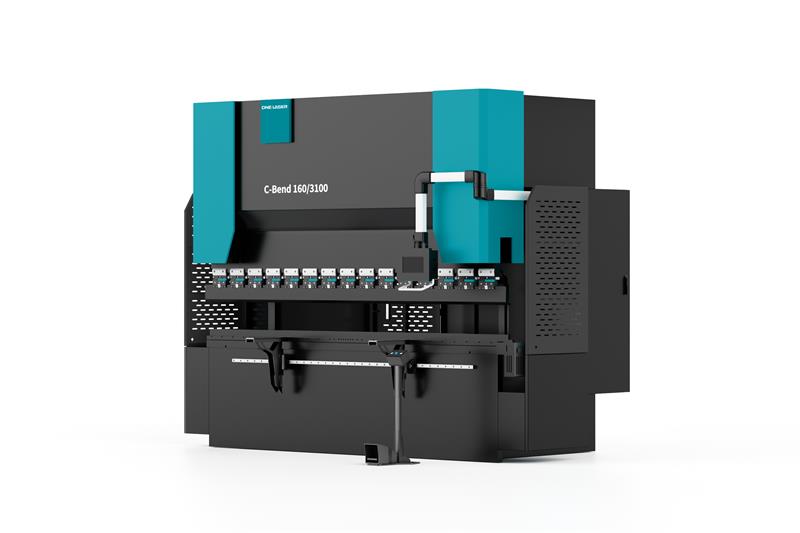

C-Bend Professional CNC Press Brake Get a Quote Product Description Product Description C-Bend series CNC bending machine is a product developed by DNE LASER which focuses on high precision sheet metal bending. The machine tool design seamlessly integrates cutting-edge bending technology, aiming to enhance processing efficiency, precision, and waste reduction. It offers exceptional cost performance. The Bend series CNC bending machine features a compact and practical C-frame structure. Through meticulous design and rigorous verification of overall machine rigidity, it expands the processing capabilities and ensures long-term stability during operation. Product Features Fast, precise, reliable back gauge system. Favorable price-performance ratio, quick return on investment. High-speed,high-precision, high-reliability rear positioning system. CNC controlled mechanical crowning technology guarantee the constantly angle accuracy. High-frequency closed-loop hydraulic control technology, faster, more efficient, more stable precision. C-frame. Unique design and whole machine rigidity verification improve the processing range and guarantee the long-term use of high stability. Technical Parameter Technical indicators Unit C-Bend 100/310 C-Bend 160/3100 Bending force kN 1000 1600 Bending length mm 3100 3100 Cylinder stroke mm 200 300 Opening height mm 500 600 Throat depth mm 410 410 Side plate spacing mm 2500 2500 X-axis travel mm 500 500 X-axis maximum positioning length mm 800 800 Y-axis precision mm 0.01 0.01 X-axis precision mm 0.05 0.05 X-axis positioning speed mm/s 400 400 R-axis travel mm 100 100 R-axis positioning speed mm/s 100 100 R-axis precision mm 0.05 0.05 Z-axis travel (for 4-axis rear positioning) mm 2300 2300 Z-axis maximum speed (for 6-axis backgauge, optional) mm/s 600 600 Y-axis rapid traverse speed mm/s 150 150 Y-axis working feed speed mm/s 10 10 Y-axis return speed mm/s 140 140 Hydraulic oil volume L 250 250 Get a Quote Ative o JavaScript no seu navegador para preencher este formulário.Ative o JavaScript no seu navegador para preencher este formulário.Name *Email *Phone * Country *City *CompanyMessage Submit Now
D-Tube 520

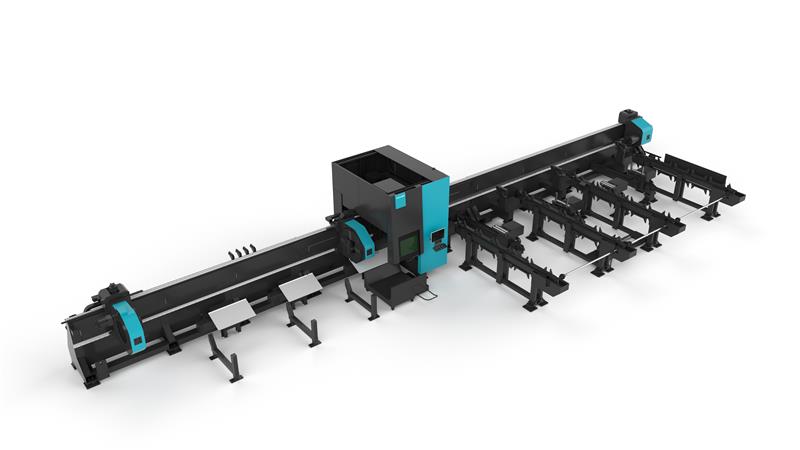

D-Tube 520 Heavy Duty Fiber Tube Laser Cutting Machine Get a Quote Product Description Product Description D-Tube 520 Professional fiber tube laser cutting machine is developed for the section bar and tube cutting market. It adopts the latest independent research and development bus type CNC laser tube cutting system to achieve tube supporting device, chuck and other control. The solution provided is designed to meet cutting requirements for various materials, including carbon steel, stainless steel, and aluminum alloy. It excels in cutting circular tubes, square tubes, U-shaped grooves, universal beams, profiled tubes, and other tube shapes. It offers precise and efficient cutting, hole-opening, and profile cutting capabilities. Product Features Segmental type unloading, various methods for different pipe lengths. Multi-point heavy-duty centering chuck, single material heavy-duty up to 1.5 tons. Capable of processing super heavy-duty pipes with a diameter of up to 520mm. Fixed Bridge Gantry with stable operation and higher precision of the cutting head. Multi-chuck automatic direction change, to achieve cutting “zero” tail material, saving material cost. High negative pressure dust extraction function, better dust extraction effect, remove residue and protect the chuck. Technical Parameter Number of chucks 3 4 Round tube (mm Φ50-Φ510 Square tube(mm) □35*35-□510*510 Theoretical maximum chuck load 1500kg Loading length 12.2m 12.2m Unloading length 6m 9m 12m 9m 12m X/Y-axis positioning accuracy ±0.05mm/m X/Y-axis repeated positioning accuracy ±0.03mm/m Bevel cutting function Optional Get a Quote Ative o JavaScript no seu navegador para preencher este formulário.Ative o JavaScript no seu navegador para preencher este formulário.Name *Email *Phone * Country *City *CompanyMessage Submit Now
D-Tube 360

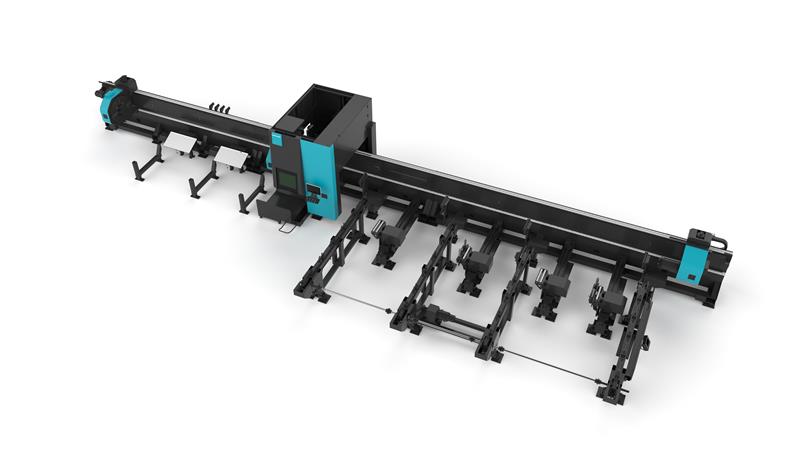

D-Tube 360 Medium Duty Fiber Tube Laser Cutting Machine Get a Quote Product Description Product Description D-Tube 360 Professional fiber laser tube cutting machine developed for the section bar and tube cutting market adopts the latest independent research and development bus type CNC laser tube cutting system to achieve tube supporting device, chuck and other control. Furthermore, it is designed to meet cutting requirements for various materials, including carbon steel, stainless steel, and aluminum alloy. It excels in cutting circular tubes, square tubes, U-shaped grooves, universal beams, profiled tubes, and other tube shapes. D-Tube 360 is an advanced, intelligently automated, highly efficient, and cost-effective tube cutting equipment. Product Features Three chucks through the chuck design combination, multi-chuck synergistic stable clamping support, up to 1200Kg load bearing Multi-chuck synergistic cutting can easily achieve the goal of zero tail material, improve the utilization rate, and realize green savings. One-key loosening and clamping, automatic centering, large and constant clamping force, no loosening or slipping of the heavy tube, full sealing design of the chuck, blocking dust and improving the service life of the chuck. Chuck seat adopts whole plate welding structure, rough machining by high temperature annealing, high-precision molding, good rigidity, light weight, good dynamic performance. The cutting head adopts capacitive sensors with high sensing accuracy, sensitive response, stable and reliable performance. Adoption of rack and pinion, high-precision linear guide, stable and accurate transmission, equipped with semi-automatic loading and unloading device to improve the productivity of the machine tool. X, Y, Z linear axes, U-axis chuck rotary axis and bevel A and B rotary axes are servo motors with high precision, high speed, high torque, stable and durable performance, which ensures the high speed and acceleration of the whole machine. Technical Parameter Number of chucks 2 3 Round tube (mm) Φ40-Φ350 Square tube(mm) □20*20-□350*350 Theoretical maximum chuck load 1200kg Loading length 6.5m 6.5m 9.2m 12.2m Unloading length 2m 6m 6m 9m 6m 9m 12m X/Y-axis positioning accuracy ±0.05mm/m X/Y-axis repeated positioning accuracy ±0.03mm/m Bevel cutting function Optional Get a Quote Ative o JavaScript no seu navegador para preencher este formulário.Ative o JavaScript no seu navegador para preencher este formulário.Name *Email *Phone * Country *City *CompanyMessage Submit Now
D-Tube-240

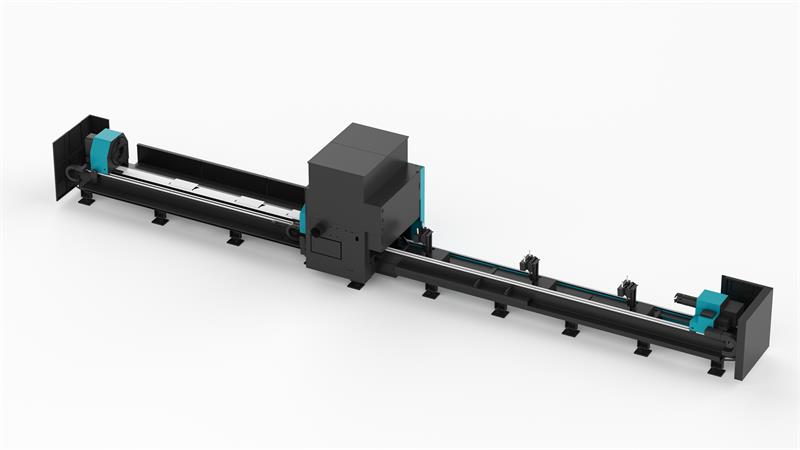

D-Tube-240 Fiber Tube Laser Cutting Machine Get a Quote Product Description Product Description DNE LASER D-Tube 240 fiber laser tube cutting machine is a product developed for the profile and pipe cutting market. It adopts the latest independent research and development bus type CNC laser pipe cutting system to achieve pipe support device, chuck and other control; Can meet the carbon steel, stainless steel, aluminum alloy material such as circular tube, square tube, U-shaped groove, I-beam, Profiled tube and other pipe profile cutting, hole cutting, profile cutting. It is a high degree of intelligent automation, high efficiency, cost-effective dedicated pipe cutting equipment. Product Features Three chucks through the chuck design combination, multi-chuck synergistic stable clamping support, up to 1200Kg load bearing Multi-chuck synergistic cutting can easily achieve the goal of zero tail material, improve the utilization rate, and realize green savings. One-key loosening and clamping, automatic centering, large and constant clamping force, no loosening or slipping of the heavy tube, full sealing design of the chuck, blocking dust and improving the service life of the chuck. Chuck seat adopts whole plate welding structure, rough machining by high temperature annealing, high-precision molding, good rigidity, light weight, good dynamic performance. The cutting head adopts capacitive sensors with high sensing accuracy, sensitive response, stable and reliable performance. Adoption of rack and pinion, high-precision linear guide, stable and accurate transmission, equipped with semi-automatic loading and unloading device to improve the productivity of the machine tool. X, Y, Z linear axes, U-axis chuck rotary axis and bevel A and B rotary axes are servo motors with high precision, high speed, high torque, stable and durable performance, which ensures the high speed and acceleration of the whole machine. Technical Parameter Number of chucks 2 3 Round tube (mm) Φ15-Φ230 Square tube(mm) □15*15-□230*230 Theoretical maximum chuck load 300kg Loading length 6.5m 6.5m 9.2m Unloading length 2m 6m 6m 9m X/Y-axis positioning accuracy ±0.05mm/m X/Y-axis repeated positioning accuracy ±0.03mm/m Bevel cutting function Optional Get a Quote Ative o JavaScript no seu navegador para preencher este formulário.Ative o JavaScript no seu navegador para preencher este formulário.Name *Email *Phone * Country *City *CompanyMessage Submit Now
