Product Description

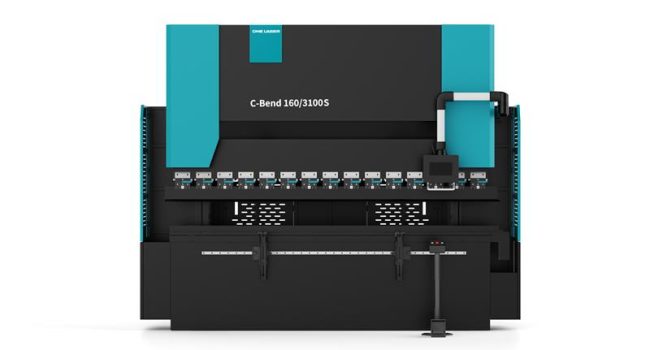

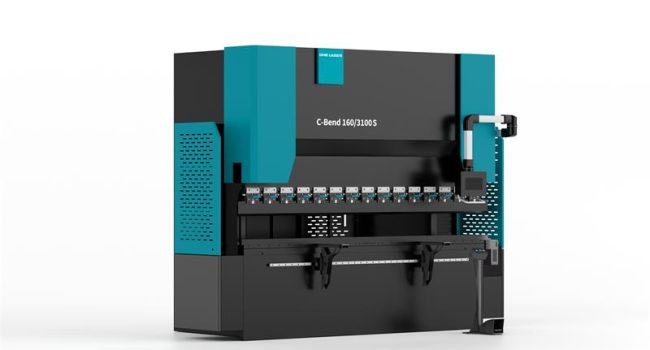

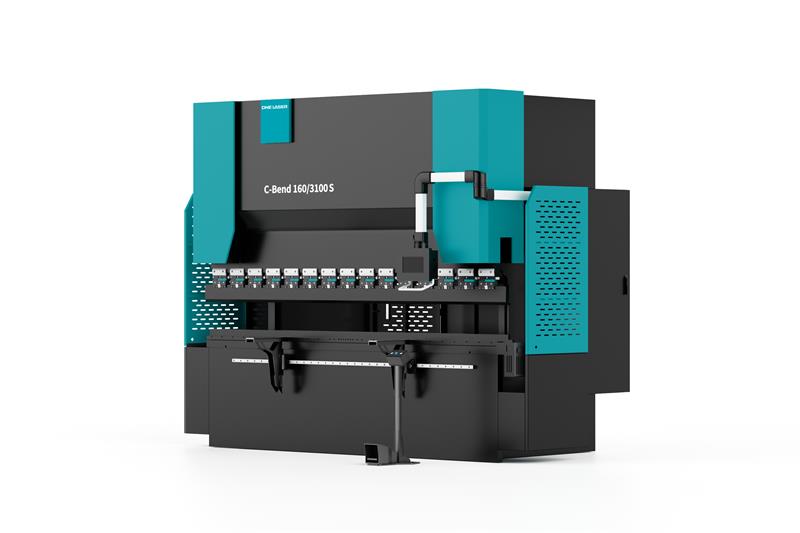

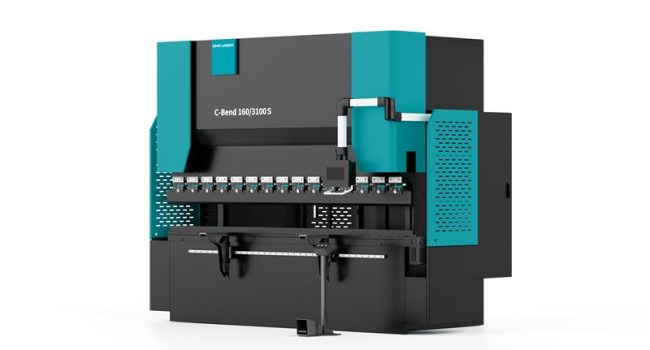

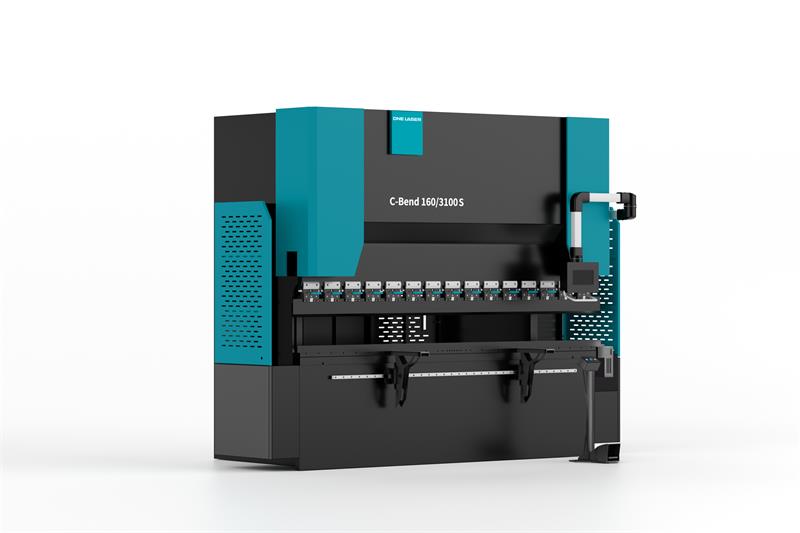

DNE LASER C-Bend S electro-hydraulic servo press brake is a powerful tool for sheet metal processing. It features advanced electro-hydraulic servo technology for stable operation and high precision. With a robust 160T force and a 3100 mm working length, it can handle a wide range of sheet metal bending tasks. The intelligent control system is user-friendly and allows for quick parameter settings. The machine’s sturdy structure ensures high reliability, enhancing bending efficiency and maintaining processing quality, offering a new level of efficiency and precision in sheet metal processing.
Product Features
CNC-controlled mechanical deflection compensation technology ensures consistent bending quality.
Favorable price-performance ratio, quick The high-frequency response closed-loop hydraulic control technology offers outstanding speed, efficiency, and precision.
The frame is integrally welded and undergoes CNC annealing to eliminate stress, ensuring precision and no deformation after processing.
The "C" frame design provides a broader processing range and higher flexibility, accommodating complex shapes and sizes of workpieces.
The enhanced hydraulic pump and main servo motor deliver superior power, resulting in faster bending speeds and significantly improved production efficiency.
Technical Parameter
| Technical indicators | Unit | C-Bend-S 100/3100 | C-Bend-S 160/3100 |
| Bending force | kN | 1000 | 1600 |
| Bending length | mm | 3100 | 3100 |
| Opening height | mm | 500 | 600 |
| Side plate spacing | mm | 2500 | 2500 |
| Throat depth | mm | 410 | 410 |
| Y-axis (oil cylinder) travel | mm | 200 | 300 |
| X-axis travel | mm | 500 | 500 |
| X-axis maximum positioning length | mm | 800 | 800 |
| R-axis travel | mm/s | 100 | 200 |
| Z-axis travel (for 6-axis backgauge, optional) | mm | 2300 | 2300 |
| Y-axis precision | mm | 0.01 | 0.01 |
| X-axis precision | mm | 0.05 | 0.05 |
| R-axis precision | mm | 0.05 | 0.05 |
| Y-axis rapid traverse speed | mm | 150 | 15 |
| Y-axis working feed speed | mm/s | 10 | 10 |
| Y-axis return speed | mm/s | 140 | 140 |
| X-axis positioning speed | mm/s | 400 | 400 |
| R-axis positioning speed | mm/s | 100 | 100 |
| Z-axis positioning speed (for 6-axis backgauge, optional) | mm/s | 600 | 600 |
| Hydraulic oil volume | L | 250 | 250 |
