Product Description

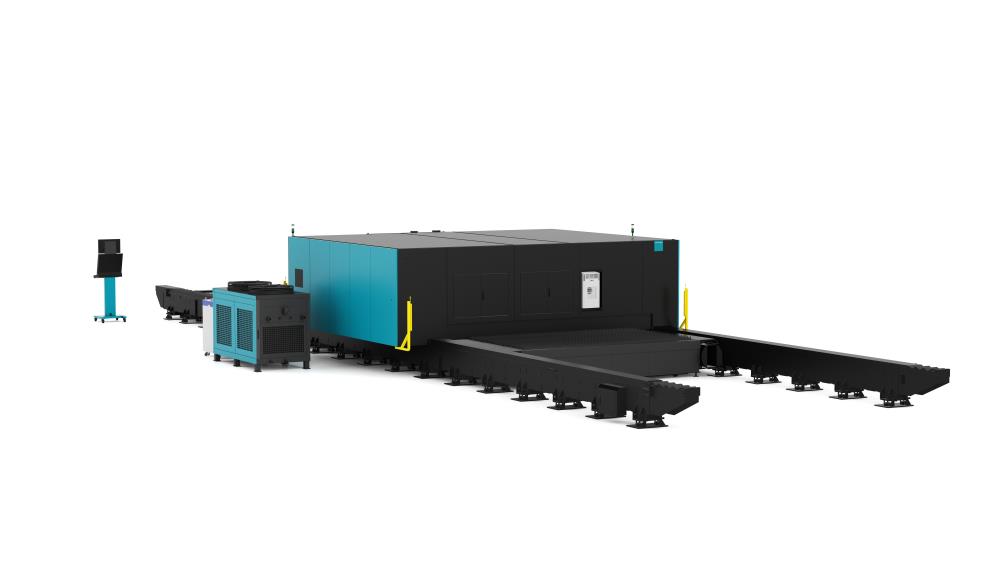

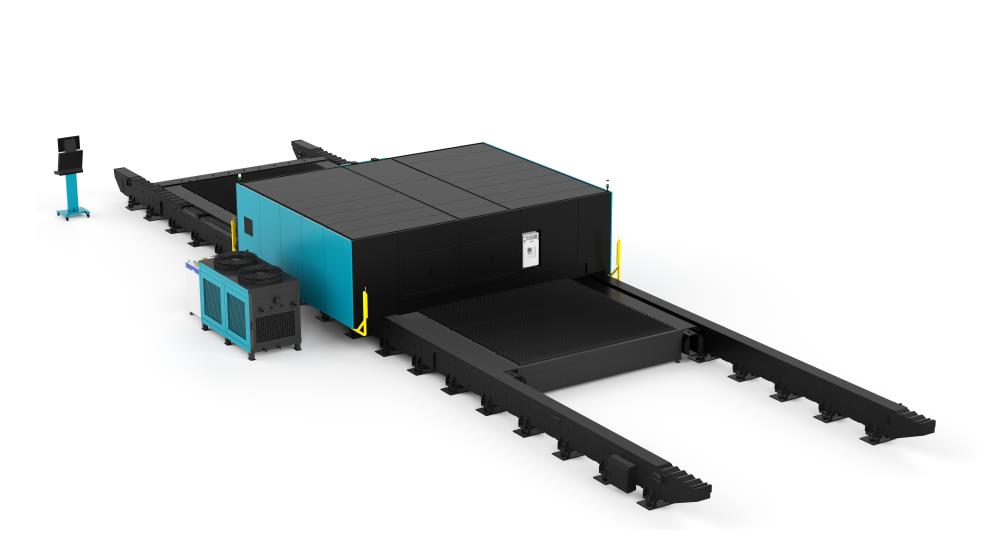

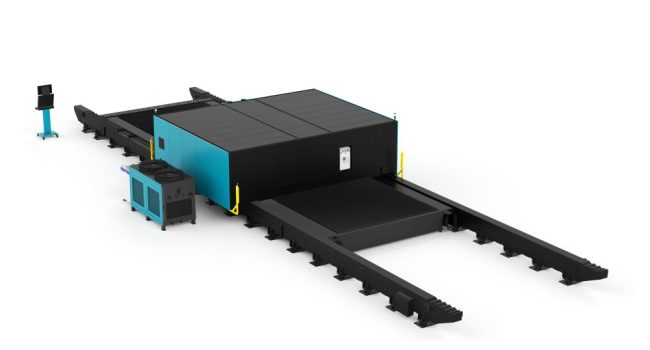

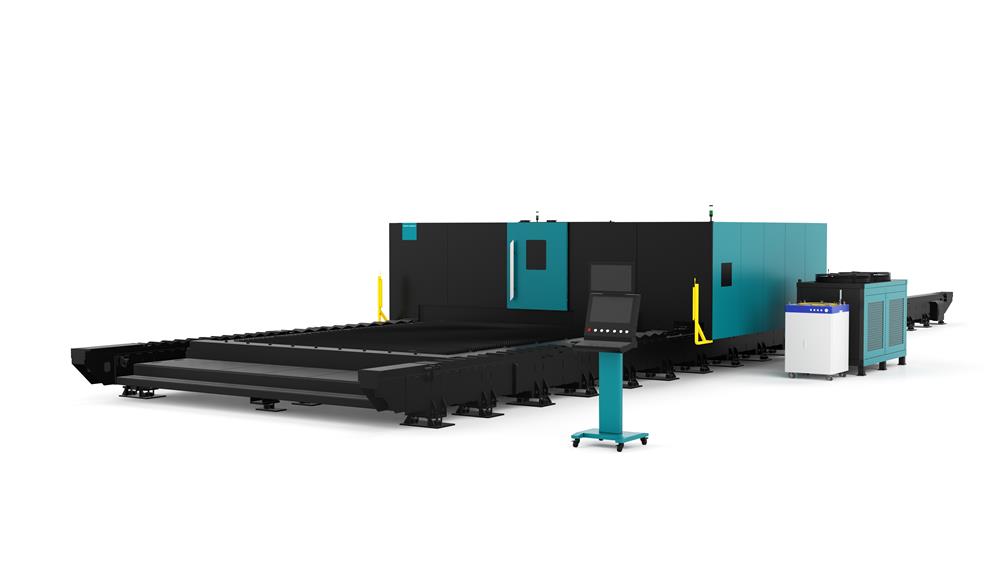

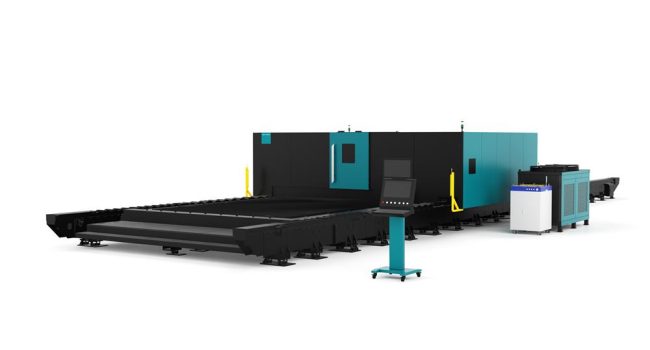

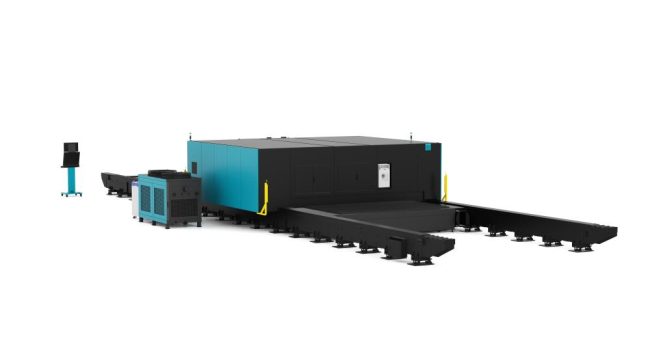

The D-Giant big size ground-rail fiber laser cutting machine is specifically configured for high-end customers who are seeking the utmost quality. Its key components are sourced from reputable suppliers, ensuring superior cutting accuracy, enhanced speed, user-friendly operation, cost-effectiveness, and a broader range of compatible materials.
Product Features
Adopting ground-rail high-precision machine tool.
Ensuring cutting precision by using separate handling and loading.
Customized process size with different lengths per requirement.
Applicable in cutting extra long and big sheet metal.
Good air exhaust effect by segmented exhaust.
Can upgrade to match mechanical arm, bending and welding equipment, etc.
Technical Parameter
| Laser Source | Fiber Laser Source(optional) |
| Format(Customizable) | Width:3m /3.5m/ 4m /4.5m /5m; Length:12-40m |
| Laser Power | 12000W 20000W 30000W 40000W 60000W 80000W |
| X/Y-axis linkage maximum acceleration | 1.4G/1.4G/1.2G/1G/1G |
| X/Y-axis linkage maximum positioning speed | 120/120/100/80/80 m/min |
| Maximum linkage positioning speed (Follow-up enclosure) | 50m/min |
| Maximum linkage acceleration(Follow-up enclosure) | 0.5G |
| X/Y-axis positioning accuracy | ±0.15mm/10m |
| X/Y-axis repeated positioning accuracy | ±0.10mm/10m |
| Power consumption of complete machine | ≤70kW ≤110kW ≤140kW ≤170kW ≤250kW ≤320kW |
| Bevel cutting function | Optional |
