Product Description

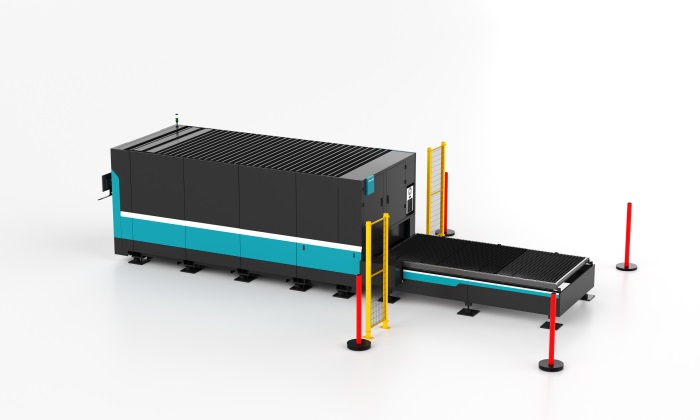

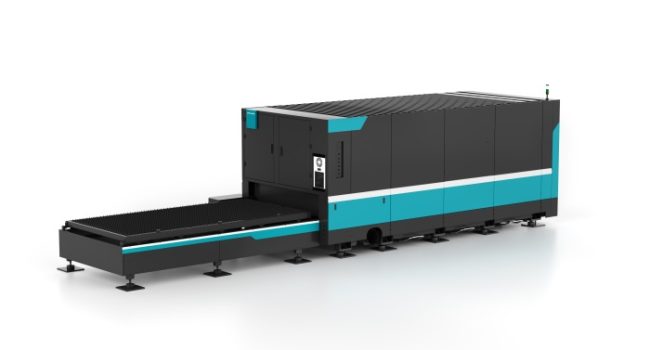

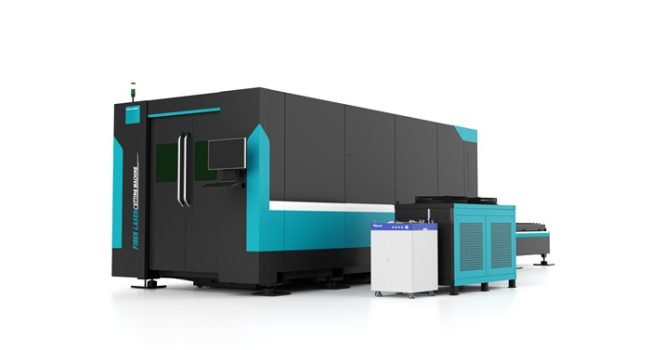

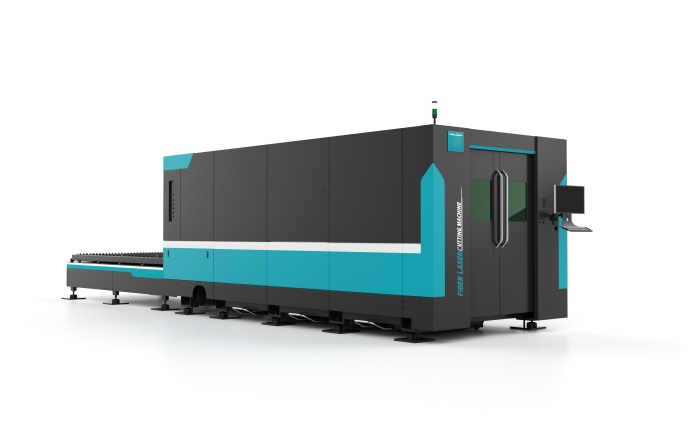

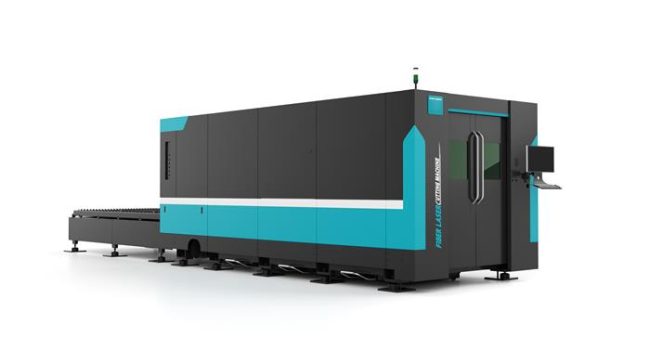

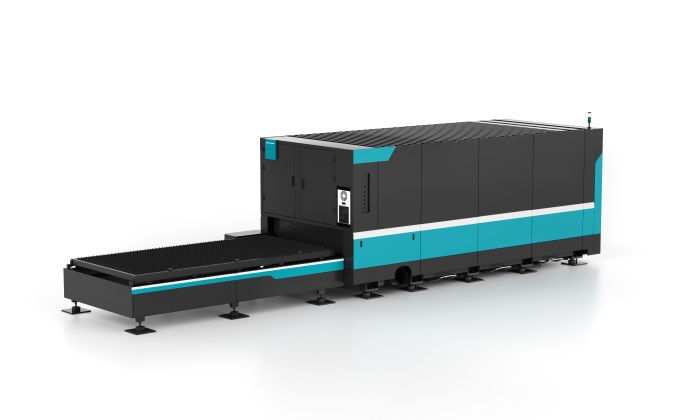

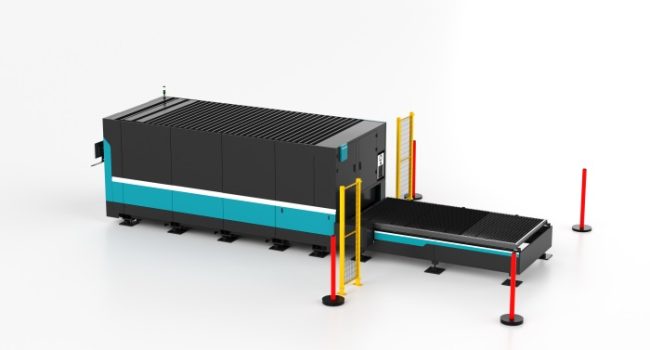

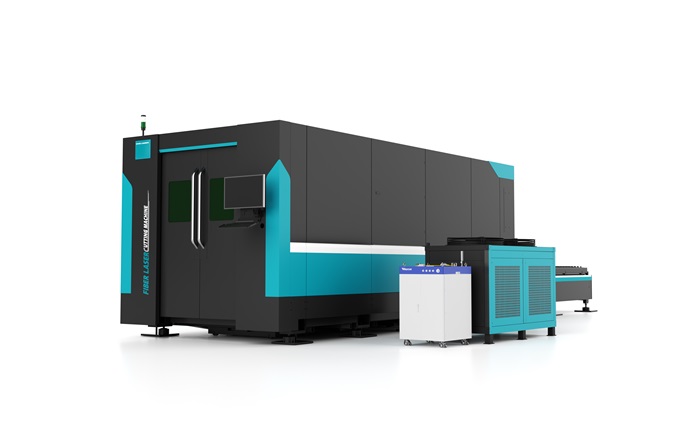

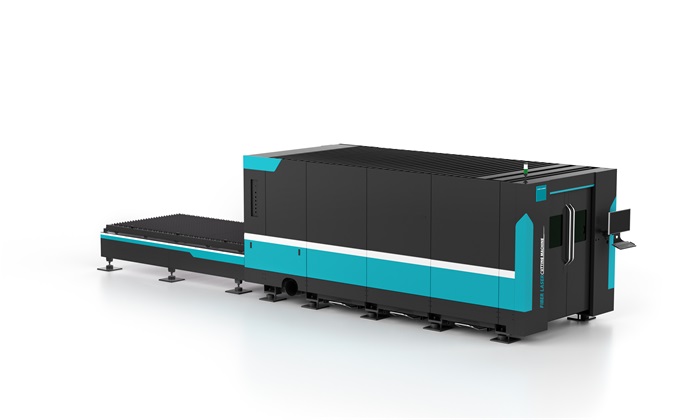

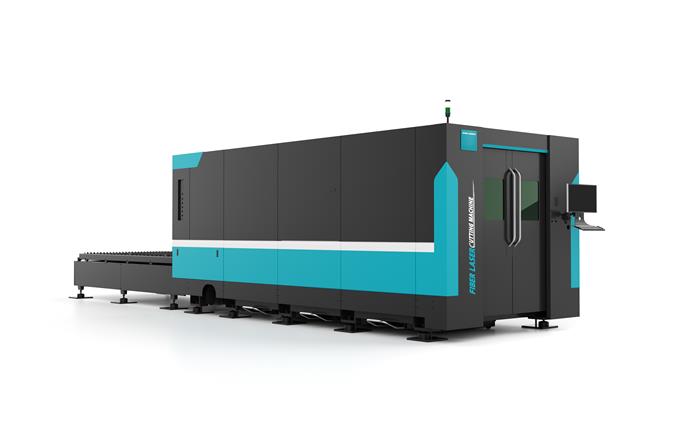

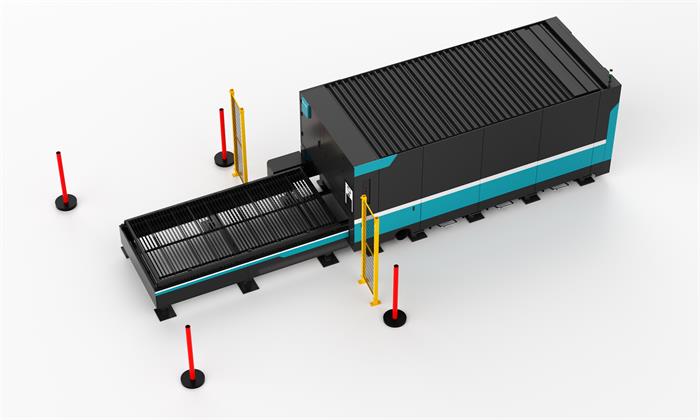

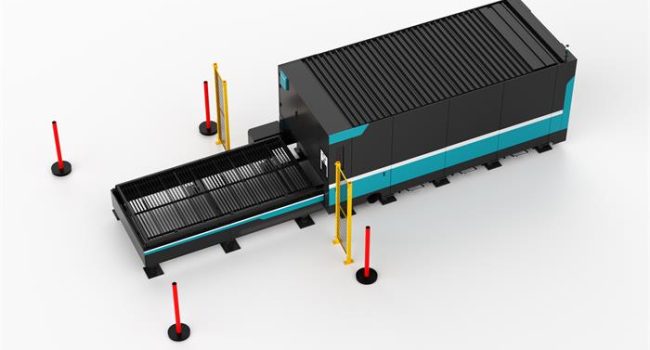

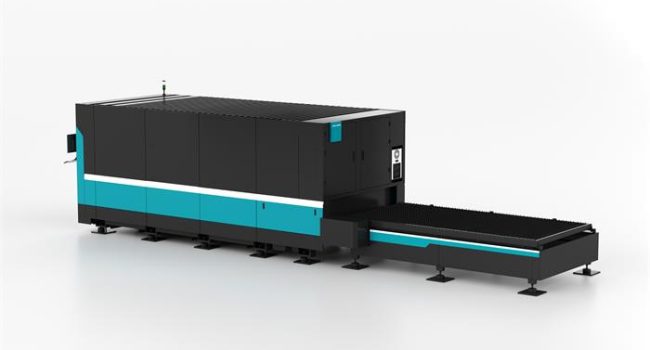

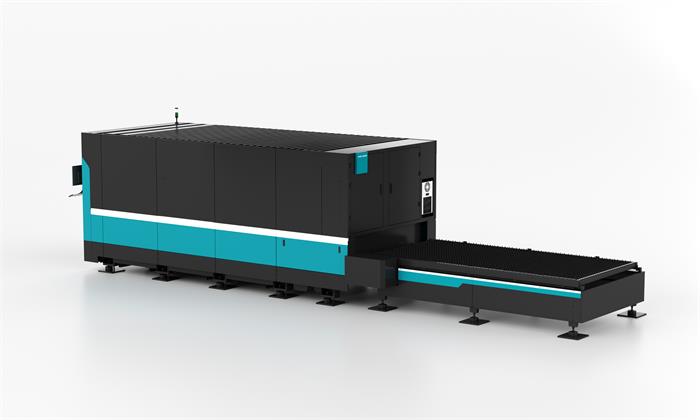

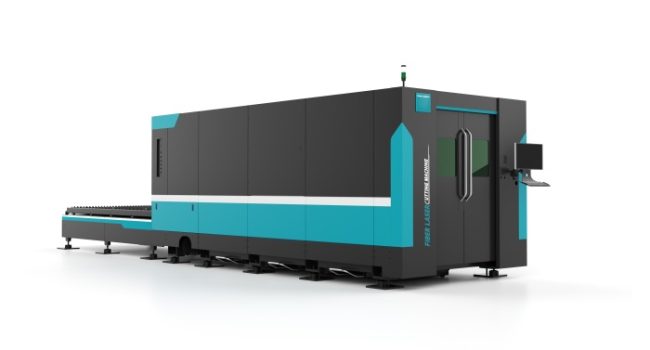

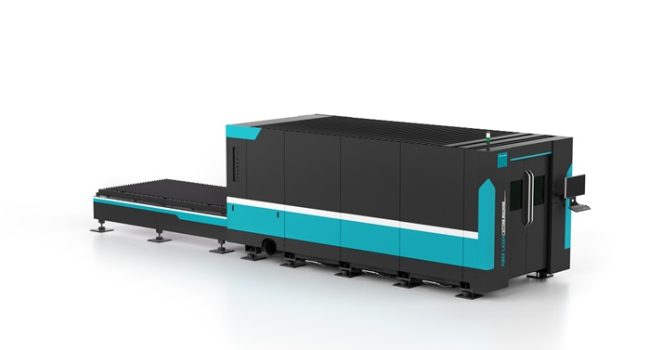

D-Power Ultra-High Power Fiber Laser Cutting Machine, designed and optimized by the DNE LASER technical team, boasts a robust structure, premium imported components, and intelligent software. It delivers exceptional performance in metal plate processing, achieving high precision and speed coupled with user-friendly operation. Furthermore, it precisely handles a wide range of metal materials of varying thicknesses while maintaining a competitive cost advantage.
Product Features
Ultra-High Power Fiber Laser Cutting Machine.
European workmanship standard machine table.
High-precision temperature and humidity control system.
Maximum power up to 30,000W, cutting ability ranges from 0.8 to 80mm, widely used.
Maximum linkage speed up to 150 metres per minute, maximum acceleration up to 1.5G, which allows customers to greatly improve production efficiency and reduce the cost of production per piece.
Coupled with intelligent functions, such as re-production of residual material and visual edge finding, helping customers to reduce non-productive time and material waste.
Equipped with a new high-performance laser generator, it can provide a higher energy density spot, which greatly improves the cutting speed of thin and medium plates.
Technical Parameter
| Laser Source | Fiber Laser Source(optional) |
| Format(Customizable) | 1530 2040 2560 2580 25120 |
| Laser Power | 3000W 6000W 12000W 20000W 30000W |
| X/Y axis linkage maximum acceleration | 1.5G |
| X/Y axis linkage maximum positioning speed | 150 m/min |
| X/Y-axis positioning accuracy | ±0.05mm |
| X/Y-axis repeated positioning accuracy | ±0.03mm |
| Power Consumption of complete Machine | ≤30kW ≤40kW ≤65kW ≤95kW ≤140kW |
| Bevel cutting function | Beveling Function：Available only on D-Power2560/2580/25120; processing restricted to upper worktable. |
