D-Trans

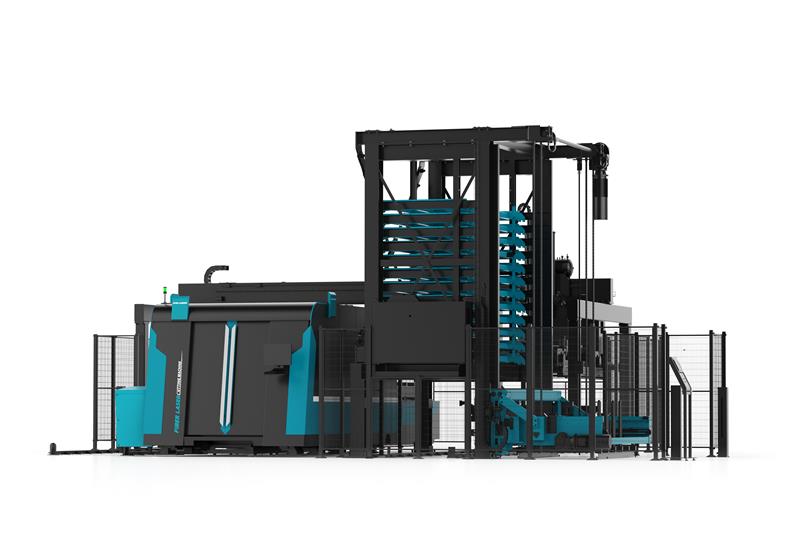

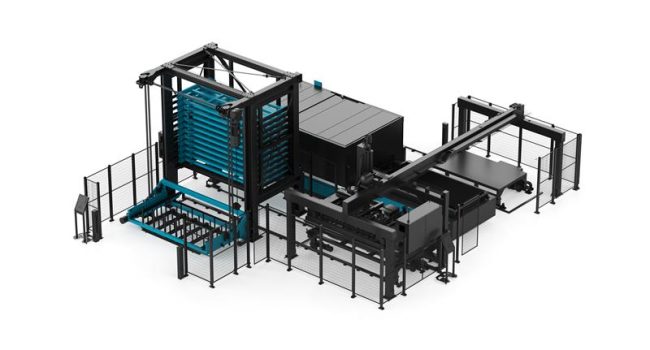

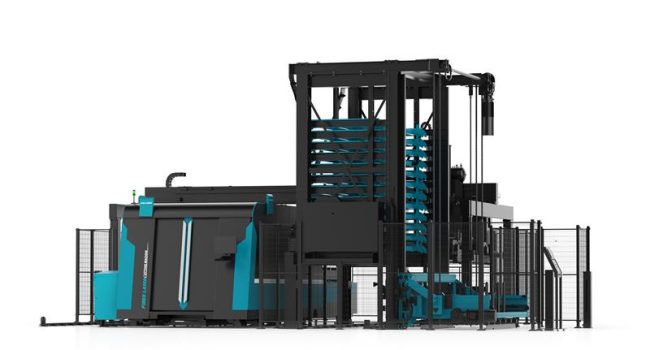

Automatic Loading and Unloading System

Product Description

D-Trans automatic loading and unloading system for laser cutting machine is used to increase the utilization and efficiency of machine tools, saving labour costs and resources, and meeting a wide range of needs from simple material handling to fully automated operations. DNE LASER specializes in providing customized solutions for fiber laser cutting machines and their auxiliary equipment. Whether it’s addressing specific processing requirements for sheet cutting, achieving precise positioning and displacement of irregular parts, or ensuring efficient large-scale production.

Product Features

20250731091035807

Save labor cost and enhance machine utilization.

list19_ico02

Rapid material processing reduces installation time.

list19_ico03

Customized specifications are available based on individual orders.

list19_ico06

Initial implementation of unattended operation in workpiece production and processing.

Technical Parameter

Model Specifications15302040
Max.Sheet Metal Weight300/800kg300/1000kg
Max.Sheet Metal Size3000*1500mm*mm400*2000mm°mm
Min.Sheet Metal Size1000°1000mm°mm1000*1000mm°mm
Sheet Metal Thickness0.8-20mm0.8-15mm
Trolley Load Weight 3000kg5000kg
Sheet Metal Distribution StandardStandard
Double Sheet Metal DetectionStandardStandard
Traceless Gear ShaperOptionalOptional

Electric Raw Material/

Small Trolley for Finished Product

OptionalOptional

Double-Layer Raw Material/

Electri Troley for Finished Product

OptionalOptional
Small Material Handling TrolleyOptionalOptional
