D-Tube F

Fiber Tube Laser Cutting Machine

Product Description

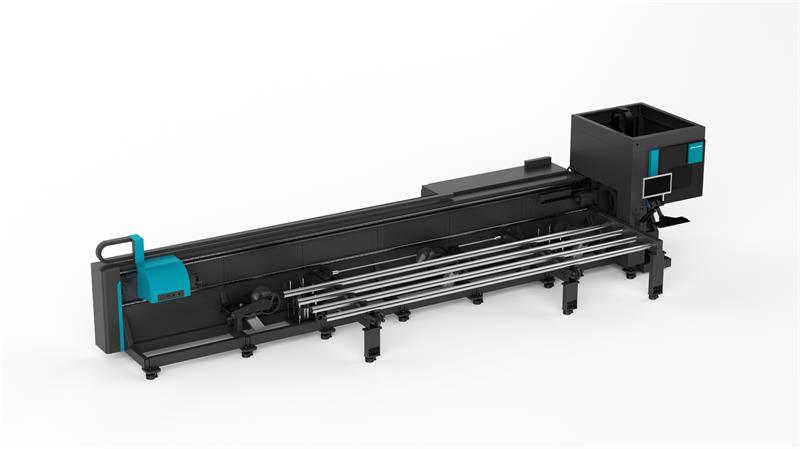

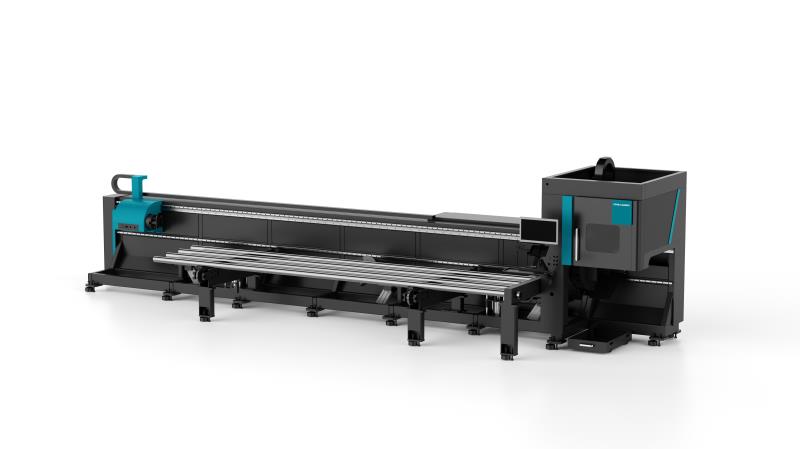

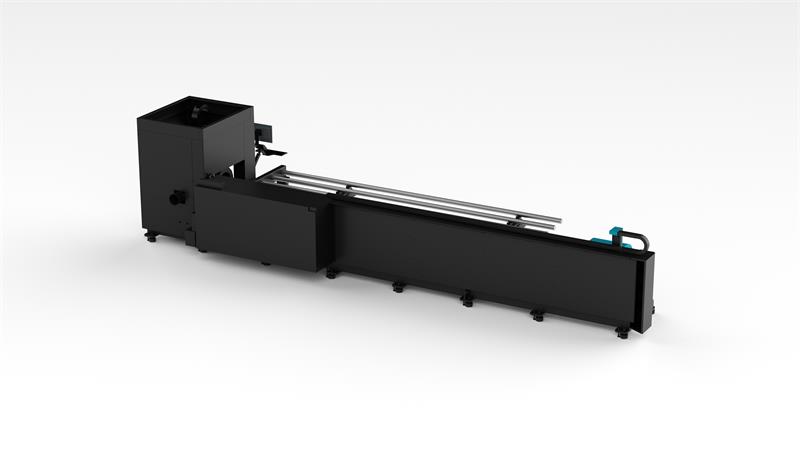

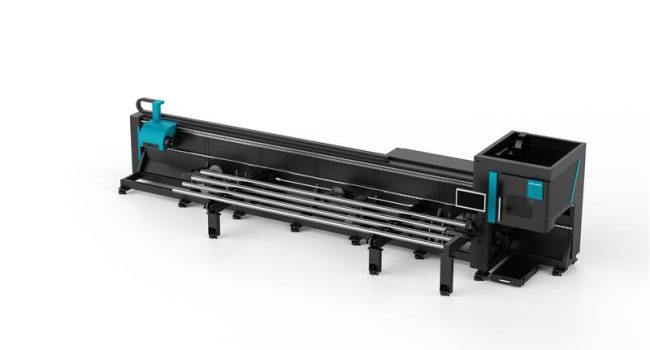

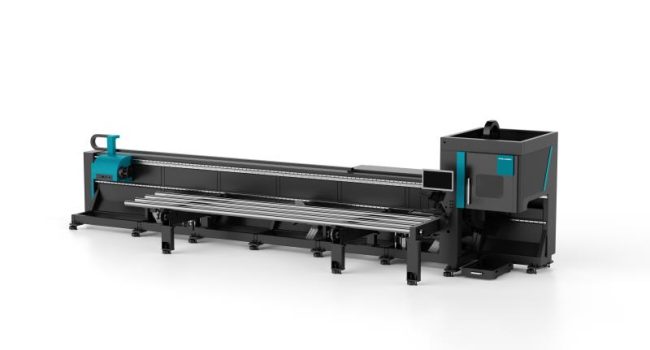

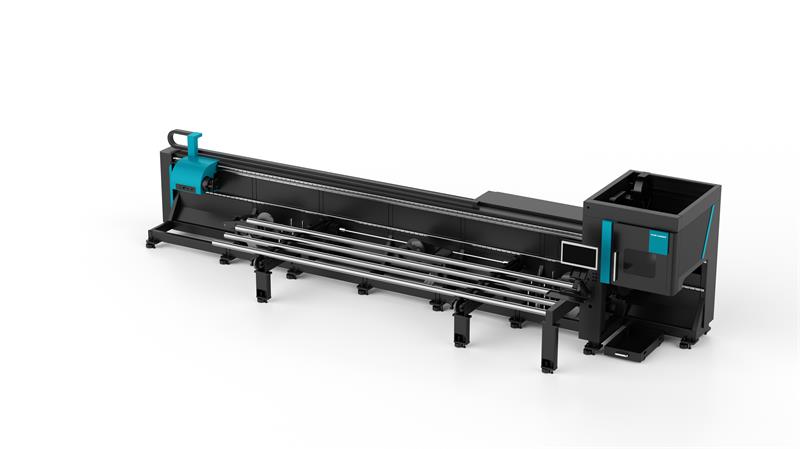

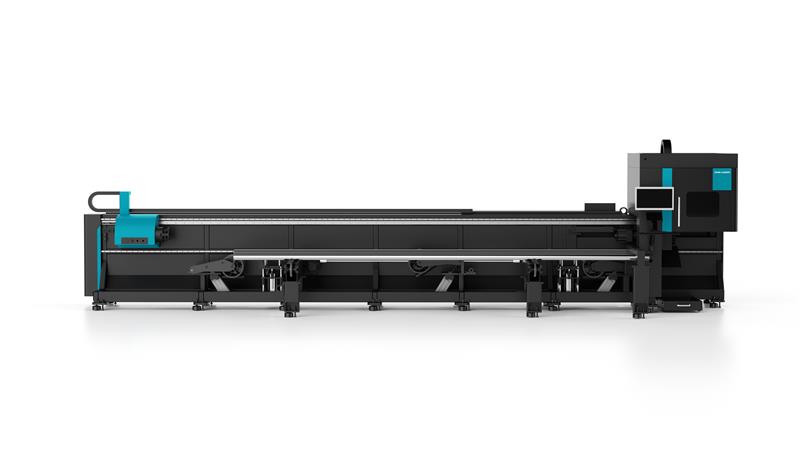

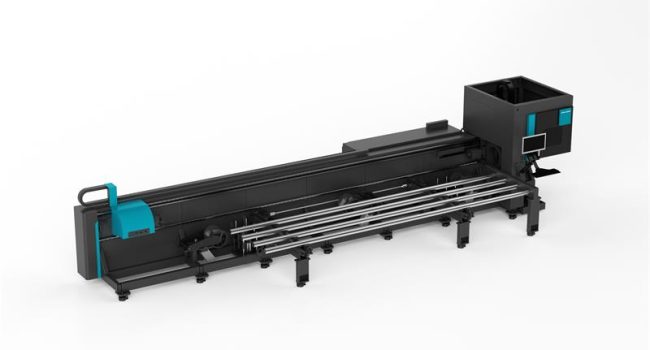

DNE LASER D-Tube F fiber tube laser cutting machine is an innovative product specifically developed for the profile and tube cutting market. It features precise control of tube support devices and chucks, delivering exceptional performance. The machine is versatile in cutting materials including carbon steel, stainless steel, aluminum alloy, and more. It can handle various profiles such as round tubes, square tubes, U-channels, I-beams, and custom-shaped tubes for cutting, hole-making, and contour cutting. It is a highly automated, efficient, and cost-effective dedicated tube-cutting equipment.

Product Features

20250731091035807

Integrated power cabinet design ensures rapid deployment, instant power-on operation, and maintenance-friendly accessibility.

20250731091035807

Side-mounted base frame with low center of gravity and triangular structure ensures stability. Easy material loading and flexible integration.

list19_ico02

Optional large unloading platform with 2000 mm space and tipping bucket design for fast and easy unloading, simplifying material collection and separation.

list19_ico02

Precision Centering & Auto-feeding System: Standard-equipped alignment mechanism with multi-tube compatibility.

list19_ico03

Automatic and continuous loading of up to 5 pipes at a time significantly reduces manual labor and boosts efficiency.

list19_ico06

120 RPM chuck rotation synchronized with 100 m/min Y-axis traversal enables unmatched processing speeds for production maximization.

list19_ico06

Proprietary chuck-adjacent cutting head design with front chuck clearance control achieves industry-leading 60mm residual material length. Maximizes material utilization while boosting throughput.

Technical Parameter

Number of chucks2
Round tube (mm)Φ15-Φ118Φ10-Φ230Φ10-Φ350
Square tube(mm)□10*10-□118*118□10*10-□230*230□10*10-□350*350
Theoretical maximum chuck load100kg300kg600kg
Loading length6.5m6.5m6.5m
Unloading length2m2m2m
X/Y-axis positioning accuracy±0.05mm/m
X/Y-axis repeated positioning accuracy±0.03mm/m
Bevel cutting functionOptional
