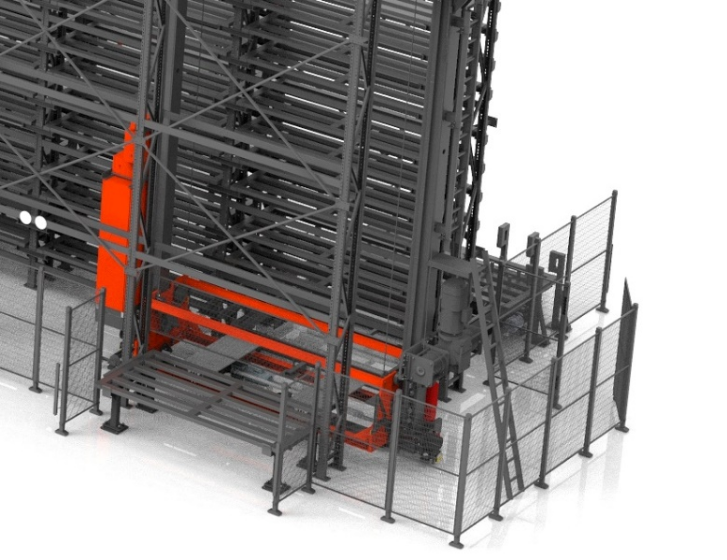

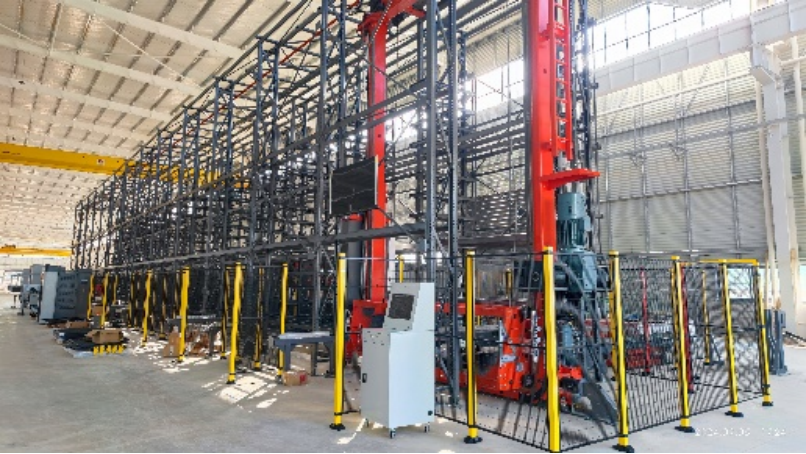

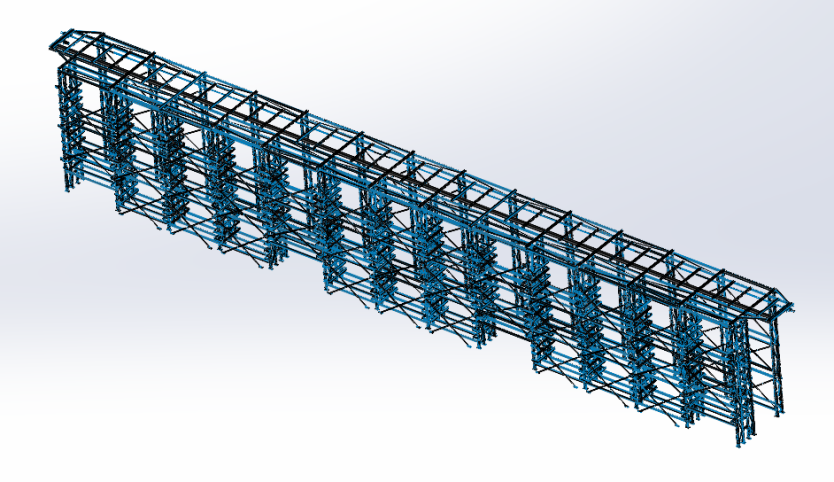

The sheet metal flexible automated processing and material storage system is centered on a new set of three-dimensional single-row three-dimensional material storage units, and an independent automated processing unit and a processing system for entering and leaving the storage trolley are arranged on the side of the three-dimensional material storage. It has the functions of automatic loading and unloading, automatic raw material storage and transfer.

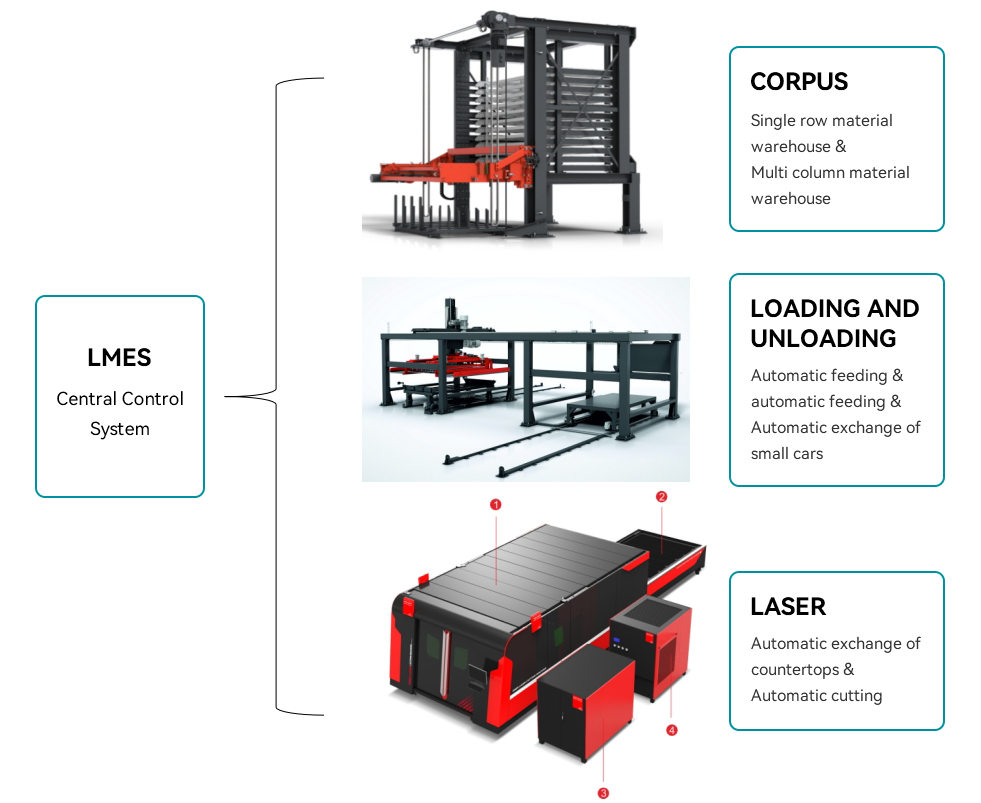

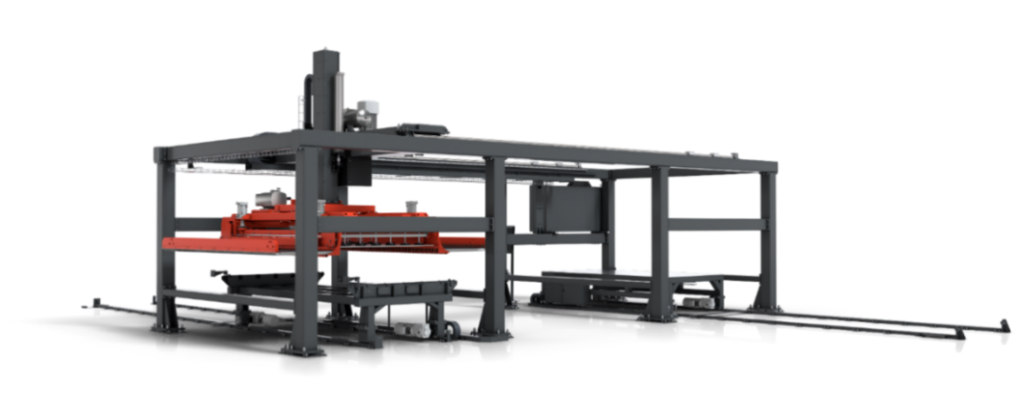

The flexible automated processing system for sheet metal described in this plan includes a new set of three-dimensional single-row warehouse units and two sets of laser cutting machines, one-to-one automatic loading and unloading systems, which realize automatic transfer, automatic feeding, automatic cutting, and automatic unloading of raw materials, and realize automated production (referring to products suitable for automated line processing). Each processing unit can also operate independently in the “offline mode”, and each can be linked with the warehouse unit to perform batch cycle processing of different workpieces.

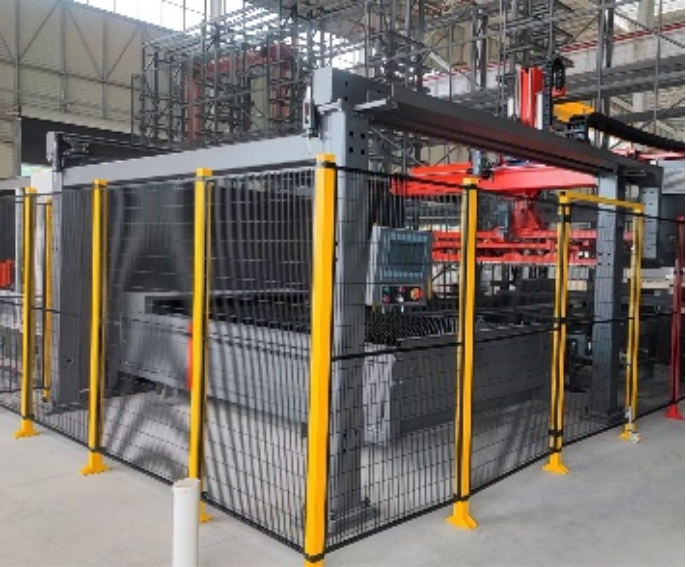

Equipment name: Sheet metal processing flexible production line

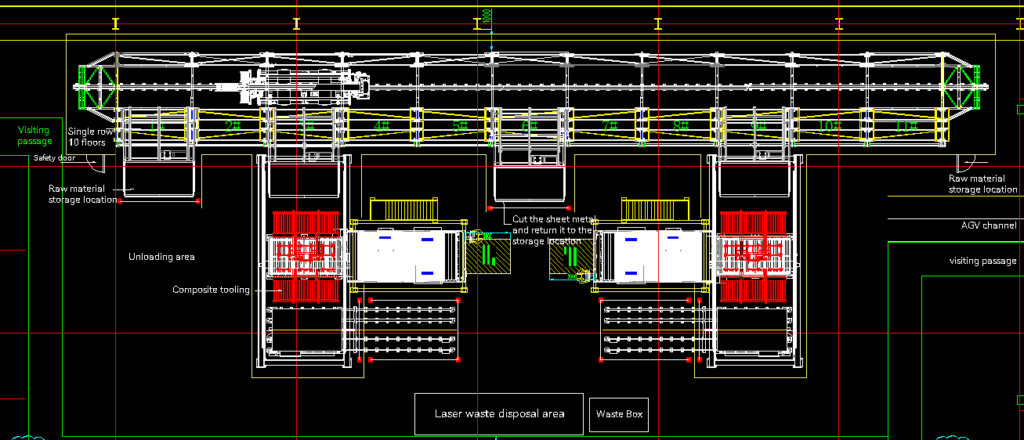

The production line equipment this time includes: 1 set of single-row raw material three-dimensional material warehouse and 2 sets of 3015 laser cutting machine automation units.
