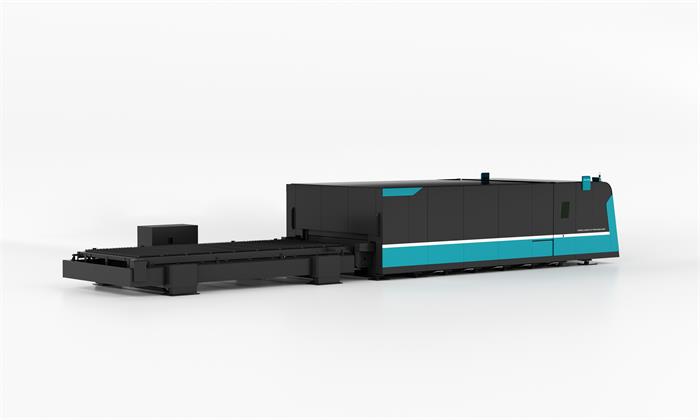

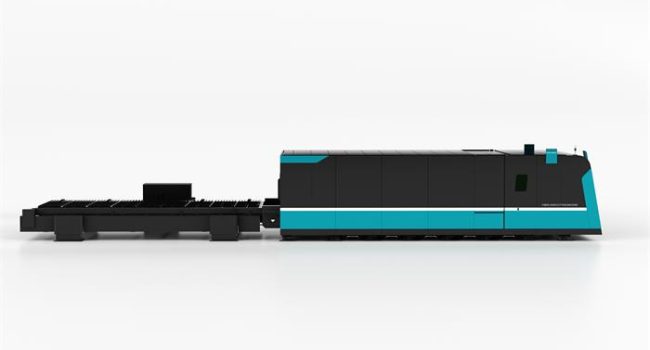

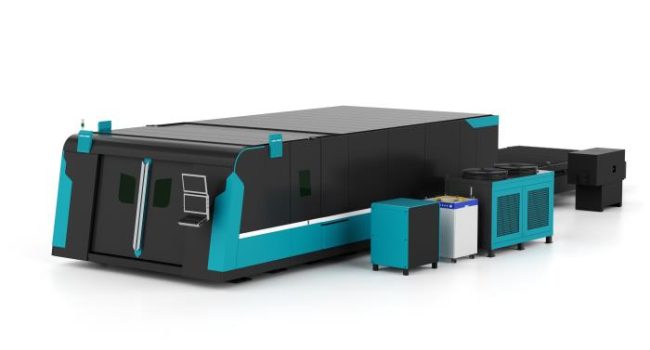

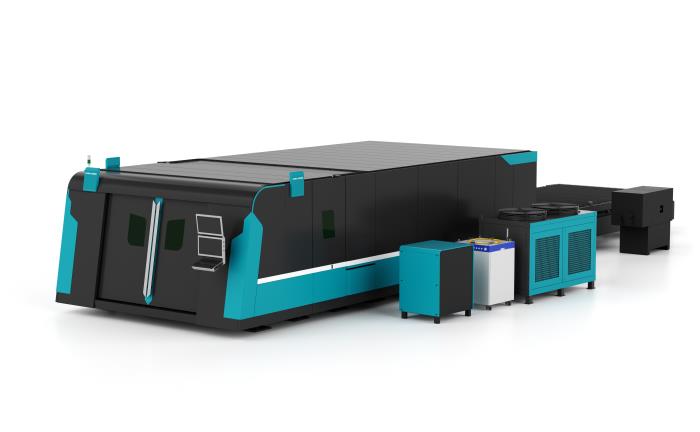

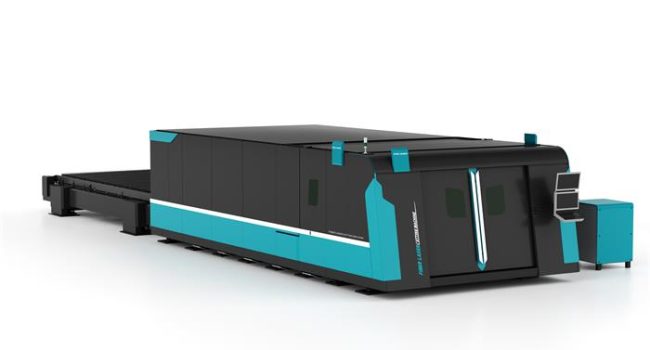

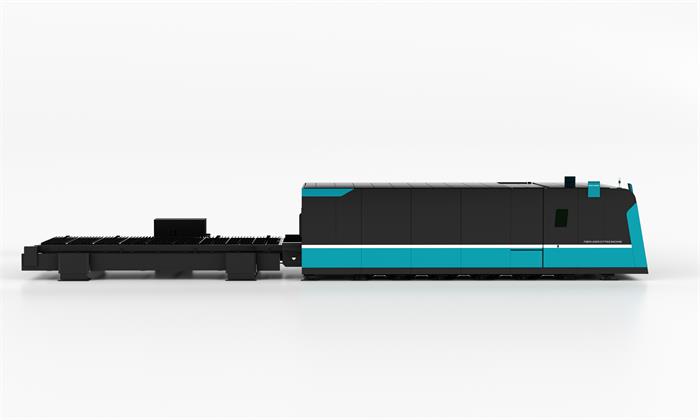

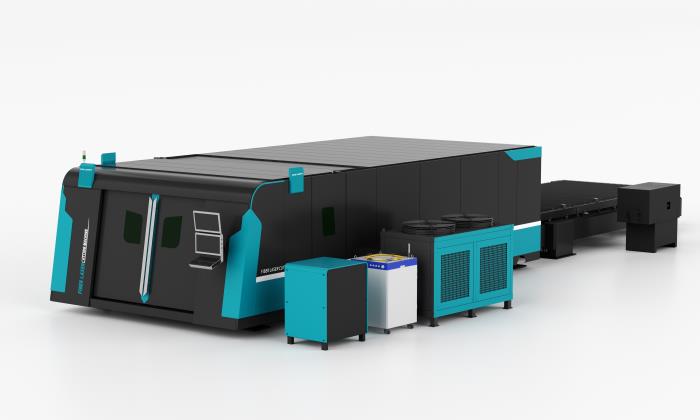

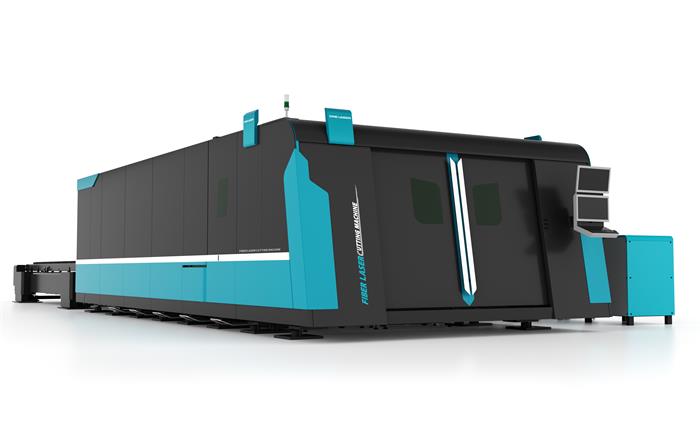

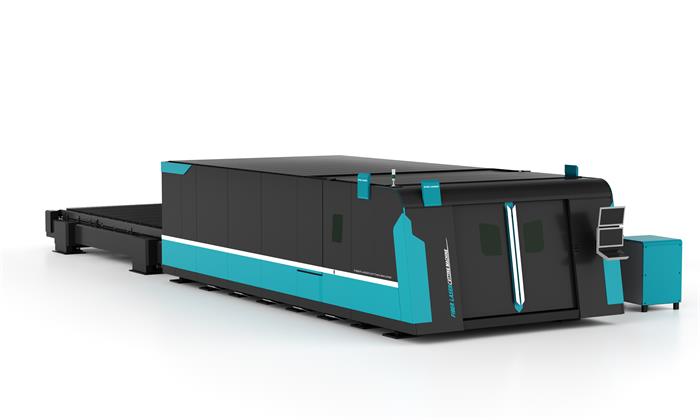

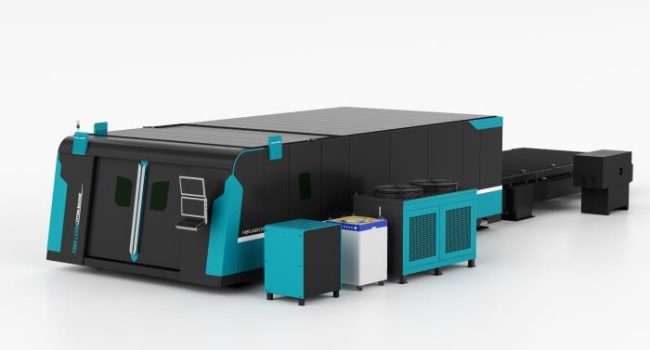

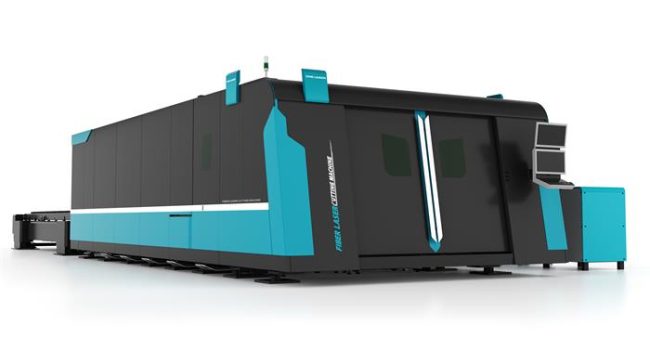

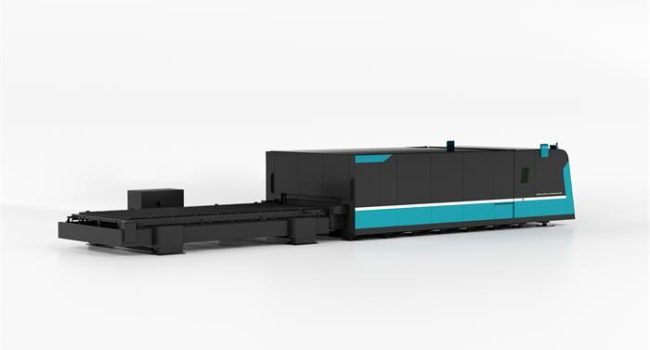

D-Soar Plus-PG

Máquina de corte láser de fibra con cabeza biselada

Descripción del producto

D-Soar Plus-PG ultra-high power fiber laser cutting machine is specifically configured for high-end customers, and the whole machine is designed and debugged by DNE LASER. The main components are imported, delivering higher cutting accuracy, faster speeds, easier operation, lower operation costs and wider cutting material range. By ingeniously adding two rotating axes to the conventional laser cutting head, the angle range is expanded from 1° to ±45°. This innovative feature enables the creation of various slope shapes such as V groove, Y groove, and X groove. These advancements not only facilitate thick-plate welding and streamline workflows but also significantly reduce time and labor costs.

Características del producto

20250731091035807

La cabina protectora totalmente cerrada cumple con los estándares nacionales de seguridad.

list19_ico01

Cuentan con capacidad para corte bisel de ±45°, soportando los tipos de bisel V, X, Y y K.

list19_ico02

Control preciso del consumo de gas, con bajo coste de uso y rápido retorno de la inversión.

list19_ico02

Sistema de defensa activa seguro y fiable, protección anticolisión, control inteligente de la carrera y función de alarma inteligente.

list19_ico06

Sistema de control de bus personalizado, software integrado de anidamiento de alta eficiencia y programa de corte serán más rápidos y cómodos.

list19_ico06

Equipado con servomotor de alto par y reductor importado de alta precisión, con alta eficiencia, buenas características dinámicas y alta precisión en el corte.

Parámetro técnico

Laser Source Fiber Laser Source(optional)
Format(Customizable) 2040   2060  2560  2580  25120
Laser Power 12000W  20000W   30000W   40000W
X/Y axis linkage maximum acceleration 1.8 G
X/Y axis linkage maximum positioning speed 180 m/min
X/Y-axis positioning accuracy ± 0.05mm
X/Y-axis repeated positioning accuracy ±0.02mm
Power Consumption of complete Machine ≤60kW  ≤80kW  ≤110kW  ≤150kW  ≤190kW
