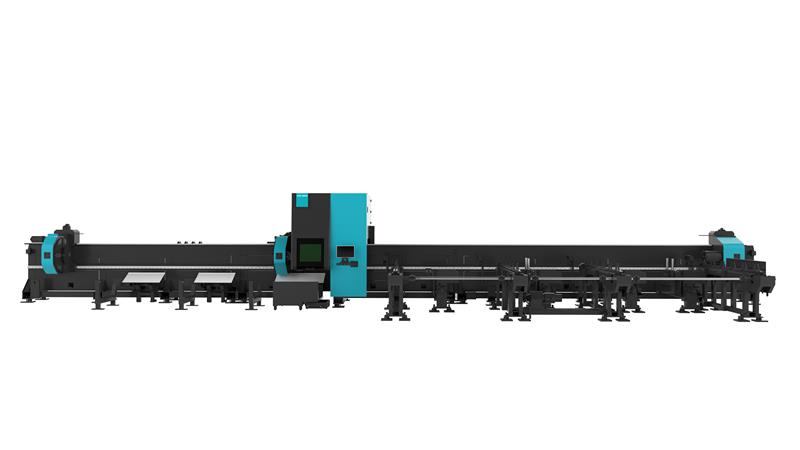

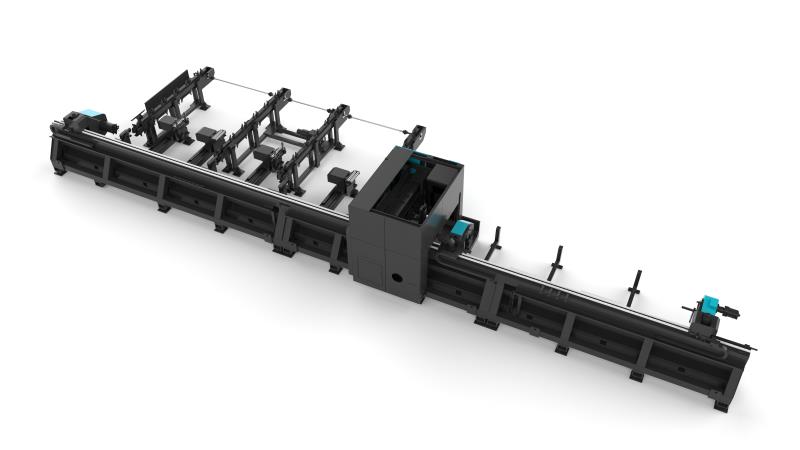

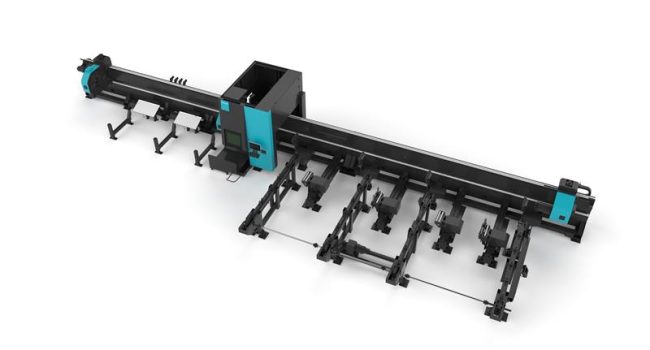

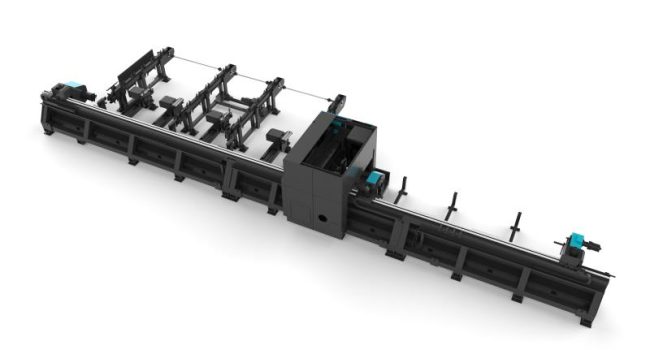

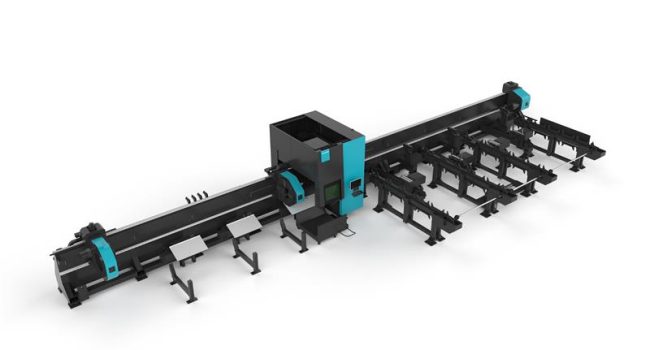

D-Tube 360
Máquina de corte láser de tubos de fibra de media resistencia
Descripción del producto
La máquina profesional de corte láser de fibra D-Tube 360, desarrollada para el mercado de barras de sección y tubos, adopta el último sistema independiente de corte láser CNC tipo bus de investigación y desarrollo para lograr el control de dispositivos de soporte de tubo, mandril y otros tipos de control. Además, está diseñado para cumplir con los requisitos de corte de diversos materiales, incluyendo acero al carbono, acero inoxidable y aleación de aluminio. Destaca en el corte de tubos circulares, tubos cuadrados, ranuras en forma de U, vigas universales, tubos perfilados y otras formas de tubo. D-Tube 360 es un equipo avanzado, inteligentemente automatizado, altamente eficiente y rentable para cortar tubos.
Product Features
Three chucks through the chuck design combination, multi-chuck synergistic stable clamping support, up to 1200Kg load bearing
Multi-chuck synergistic cutting can easily achieve the goal of zero tail material, improve the utilization rate, and realize green savings.
One-key loosening and clamping, automatic centering, large and constant clamping force, no loosening or slipping of the heavy tube, full sealing design of the chuck, blocking dust and improving the service life of the chuck.
Chuck seat adopts whole plate welding structure, rough machining by high temperature annealing, high-precision molding, good rigidity, light weight, good dynamic performance.
The cutting head adopts capacitive sensors with high sensing accuracy, sensitive response, stable and reliable performance.
Adoption of rack and pinion, high-precision linear guide, stable and accurate transmission, equipped with semi-automatic loading and unloading device to improve the productivity of the machine tool.
X, Y, Z linear axes, U-axis chuck rotary axis and bevel A and B rotary axes are servo motors with high precision, high speed, high torque, stable and durable performance, which ensures the high speed and acceleration of the whole machine.
Parámetro técnico
| Number of chucks | 2 | 3 | |||||||
| Round tube (mm) | Φ40-Φ350 | ||||||||
| Square tube(mm) | □20*20-□350*350 | ||||||||
| Theoretical maximum chuck load | 1200kg | ||||||||
| Loading length | 6.5m | 6.5m | 9.2m | 12.2m | |||||
| Unloading length | 2m | 6m | 6m | 9m | 6m | 9m | 12m | ||
| X/Y-axis positioning accuracy | ±0.05mm/m | ||||||||
| X/Y-axis repeated positioning accuracy | ±0.03mm/m | ||||||||
| Bevel cutting function | Optional | ||||||||
