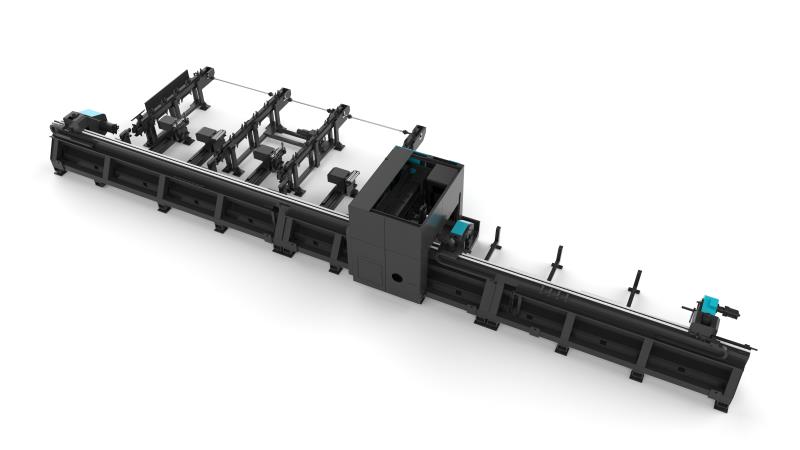

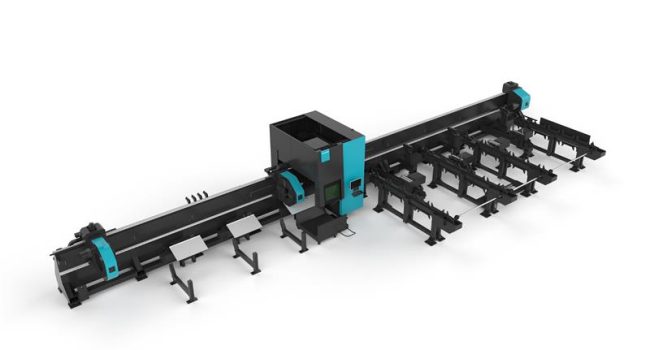

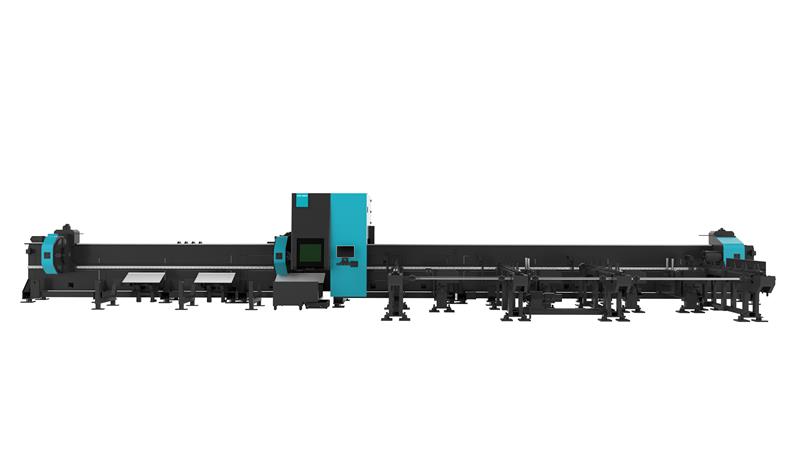

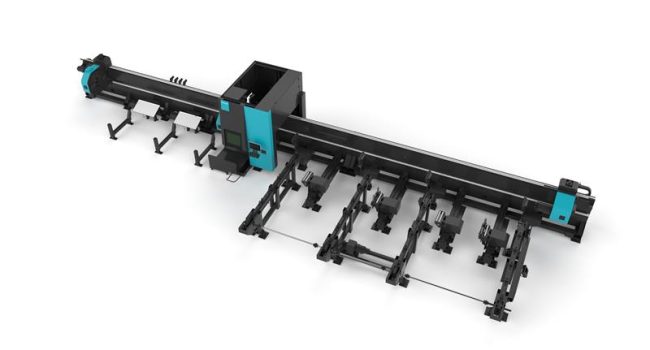

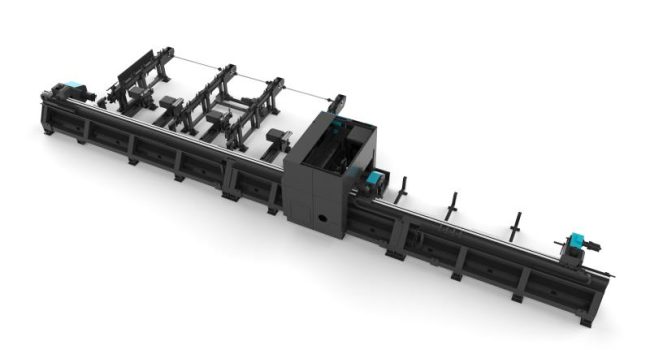

D-Tube 360

Máquina de corte a laser de tubos de fibra de média capacidade

Descrição do Produto

A máquina profissional de corte de tubos a laser D-Tube 360, desenvolvida para o mercado de barras de seção e tubulos, adota o mais recente sistema independente de corte de tubos a laser CNC tipo barramento de pesquisa e desenvolvimento para alcançar o controle de dispositivos de suporte de tubo, mandril e outros. Além disso, é projetado para atender aos requisitos de corte de diversos materiais, incluindo aço carbono, aço inoxidável e liga de alumínio. Ele se destaca no corte de tubos circulares, tubos quadrados, sulcos em formato de U, vigas universais, tubos perfilados e outros formatos de tubo. O D-Tube 360 é um equipamento avançado, inteligentemente automatizado, altamente eficiente e econômico.

Product Features

list19_ico06

Three chucks through the chuck design combination, multi-chuck synergistic stable clamping support, up to 1200Kg load bearing

list19_ico06

Multi-chuck synergistic cutting can easily achieve the goal of zero tail material, improve the utilization rate, and realize green savings.

list19_ico04

One-key loosening and clamping, automatic centering, large and constant clamping force, no loosening or slipping of the heavy tube, full sealing design of the chuck, blocking dust and improving the service life of the chuck.

list19_ico04

Chuck seat adopts whole plate welding structure, rough machining by high temperature annealing, high-precision molding, good rigidity, light weight, good dynamic performance.

list19_ico05

The cutting head adopts capacitive sensors with high sensing accuracy, sensitive response, stable and reliable performance.

20250731091035807

Adoption of rack and pinion, high-precision linear guide, stable and accurate transmission, equipped with semi-automatic loading and unloading device to improve the productivity of the machine tool.

list19_ico05

X, Y, Z linear axes, U-axis chuck rotary axis and bevel A and B rotary axes are servo motors with high precision, high speed, high torque, stable and durable performance, which ensures the high speed and acceleration of the whole machine.

Parâmetro Técnico

Number of chucks23
Round tube (mm)Φ40-Φ350
Square tube(mm)□20*20-□350*350
Theoretical maximum chuck load1200kg
Loading length6.5m6.5m9.2m12.2m
Unloading length2m6m6m9m6m9m12m
X/Y-axis positioning accuracy±0.05mm/m
X/Y-axis repeated positioning accuracy ±0.03mm/m
Bevel cutting functionOptional
